element <supervisoryBody> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
SupervisoryBody
Content:
simple, 1 attribute
Defined:
locally within SupervisorRegistration.model group in fpml-doc-5-7.xsd; see XML source

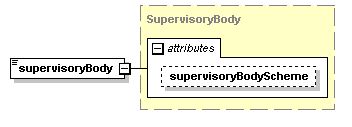

Content Model Diagram
XML Representation Summary
<supervisoryBody

 =
xsd:anyURI : "http://www.fpml.org/coding-scheme/supervisory-body"

>

Content:
{ xsd:normalizedString }
</supervisoryBody>
Simple Content Detail:
MaxLength:
255
Included in content model of elements (4):
supervisorRegistration (in endUserExceptionDeclaration),
supervisorRegistration (in mandatoryFacilityExecutionExceptionDeclaration),
supervisorRegistration (in reportingRegime defined in PartyTradeInformation complexType),
supervisorRegistration (in reportingRegime defined in PartyTradeInformation complexType)
Annotation
The regulator or other supervisory body the organization is registered with (e.g. SEC).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="supervisoryBody" type="SupervisoryBody"/>
