element <relatedExchangeId> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ExchangeId
Content:	simple, 1 attribute
Defined:	locally within ExchangeIdentifier.model group in fpml-asset-5-8.xsd; see XML source

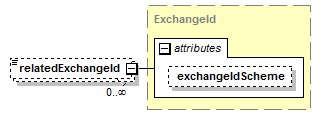

Content Model Diagram

XML Representation Summary

<relatedExchangeId

exchangeIdScheme

xsd:anyURI : "http://www.fpml.org/coding-scheme/external/exchange-id-MIC-1-0"

Content:

{ xsd:normalizedString }

</relatedExchangeId>

Simple Content Detail:

MaxLength:	255
MinLength:	1

Included in content model of elements (13):

equity,

exchangeTradedContractNearest (in rateOfReturn),

exchangeTradedContractNearest (in variance),

exchangeTradedFund,

extraordinaryEvents (defined in EquityDerivativeLongFormBase complexType),

extraordinaryEvents (defined in NettedSwapBase complexType),

extraordinaryEvents (in equityOptionTransactionSupplement),

extraordinaryEvents (in equitySwapTransactionSupplement),

extraordinaryEvents (in returnSwap),

Annotation

A short form unique identifier for a related exchange. If the element is not present then the exchange shall be the primary exchange on which listed futures and options on the underlying are listed. The term "Exchange" is assumed to have the meaning as defined in the ISDA 2002 Equity Derivatives Definitions.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedExchangeId" type="ExchangeId"/>
