element <observationStartTime> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	BusinessCenterTime
Content:	complex, 2 elements
Defined:	locally within FxBarrier.model group in fpml-fx-complex-5-8.xsd; see XML source

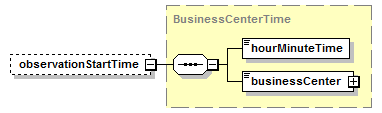

Content Model Diagram

XML Representation Summary

Content:

hourMinuteTime, businessCenter

</observationStartTime>

Content model elements (2):

businessCenter (defined in BusinessCenterTime complexType),

hourMinuteTime (defined in BusinessCenterTime complexType)

Included in content model of elements (2):

knockoutBarrier (in fxTargetForward),

perExpiryBarrier

Annotation

The time on the start date at which the observation period for an american barrier starts. If the time is not present and the start date is equivalent to the transaction date, the time is deemed to be the time the transaction was entered into. If the time is not present and the start date is other than the transaction date, then the time is deemed to be the same as the expiration time.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="observationStartTime" type="BusinessCenterTime"/>
