element <settlementCurrency> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Currency
Content:
simple, 1 attribute
Defined:
locally within SettlementAmountOrCurrency.model group in fpml-shared-5-8.xsd; see XML source

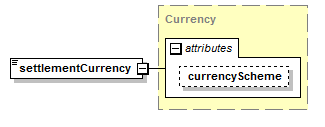

Content Model Diagram
XML Representation Summary
<settlementCurrency

 =
xsd:anyURI : "http://www.fpml.org/coding-scheme/external/iso4217-2001-08-15"

>

Content:
{ xsd:normalizedString }
</settlementCurrency>
Simple Content Detail:
MaxLength:
255
MinLength:
0
Included in content model of elements (9):
bondOption,
correlationLeg,
creditDefaultSwapOption,
dividendLeg,
farLeg (in repo),
nearLeg (in repo),
returnLeg,
varianceLeg (defined in VarianceSwapTransactionSupplement complexType),
varianceLeg (in varianceSwap)
Annotation
Settlement Currency for use where the Settlement Amount cannot be known in advance
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="settlementCurrency" type="Currency"/>
