element <specifiedExchangeId> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ExchangeId
Content:	simple, 1 attribute
Defined:	locally within ExchangeIdentifier.model group in fpml-asset-5-8.xsd; see XML source

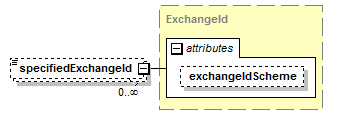

Content Model Diagram

XML Representation Summary

<specifiedExchangeId

exchangeIdScheme

xsd:anyURI : "http://www.fpml.org/coding-scheme/external/exchange-id-MIC-1-0"

Content:

{ xsd:normalizedString }

</specifiedExchangeId>

Simple Content Detail:

MaxLength:	255
MinLength:	1

Included in content model of elements (13):

equity,

exchangeTradedContractNearest (in rateOfReturn),

exchangeTradedContractNearest (in variance),

exchangeTradedFund,

extraordinaryEvents (defined in EquityDerivativeLongFormBase complexType),

extraordinaryEvents (defined in NettedSwapBase complexType),

extraordinaryEvents (in equityOptionTransactionSupplement),

extraordinaryEvents (in equitySwapTransactionSupplement),

extraordinaryEvents (in returnSwap),

Annotation

A short form unique identifier for a specified exchange. If the element is not present then the exchange shall be default terms as defined in the MCA; unless otherwise specified in the Transaction Supplement.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="specifiedExchangeId" type="ExchangeId"/>
