element <newTradeIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
PartyTradeIdentifier
Content:
complex, 1 attribute, 11 elements
Defined:
locally within NewTrade.model group in fpml-business-events-5-8.xsd; see XML source

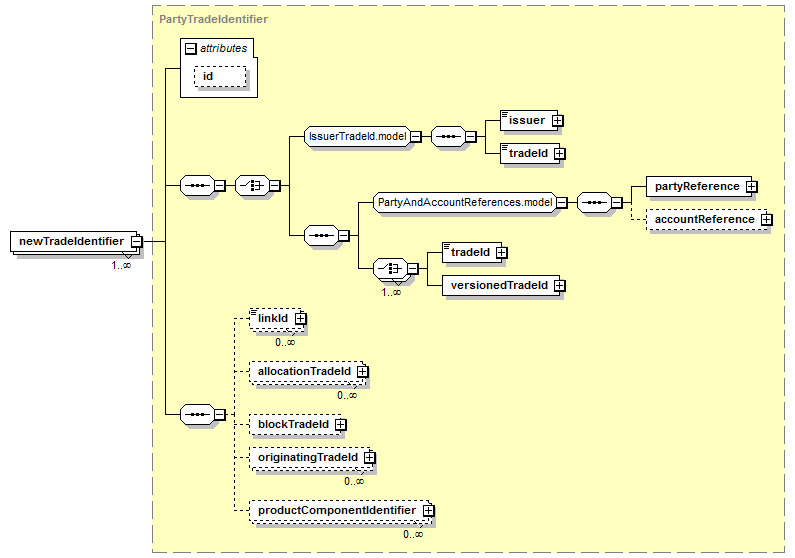

Content Model Diagram
XML Representation Summary
<newTradeIdentifier

id
 =
xsd:ID

>

Content:
((issuer, tradeId) | (partyReference, accountReference?, (tradeId | versionedTradeId)+)), linkId*, allocationTradeId*, blockTradeId?, originatingTradeId*, productComponentIdentifier*
</newTradeIdentifier>
Content model elements (11):
accountReference (defined in PartyAndAccountReferences.model group),
allocationTradeId (defined in PartyTradeIdentifier complexType),
blockTradeId,
issuer (defined in IssuerTradeId.model group),
linkId,
originatingTradeId (defined in PartyTradeIdentifier complexType),
partyReference (defined in PartyAndAccountReferences.model group),
productComponentIdentifier,
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
Included in content model of elements (1):
novation
Annotation
Indicates a reference to the new trade between the transferee and the remaining party.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="newTradeIdentifier" type="PartyTradeIdentifier"/>
