XML Schema Documentation

Super-types:	TradeIdentifier < PartyTradeIdentifier (by extension) < AllocationTradeIdentifier (by extension)
Sub-types:	None

Name	AllocationTradeIdentifier
Abstract	no
Documentation	This type is used to identify that a trade id is referring to a bock trade.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<partyReference> PartyReference </partyReference> [1]

'A pointer style reference to a party identifier defined elsewhere in the document. The party referenced has allocated the trade identifier.'

Start Choice [1..*]

<tradeId> TradeId </tradeId> [1]

<versionedTradeId> VersionedTradeId </versionedTradeId> [1]

End Choice

<linkId> LinkId </linkId> [0..*]

'A link identifier allowing the trade to be associated with other related trades, e.g. the linkId may contain a tradeId for an associated trade or several related trades may be given the same linkId. FpML does not define the domain values associated with this element. Note that the domain values for this element are not strictly an enumerated list.'

<blockTradeId> PartyTradeIdentifier </blockTradeId> [0..1]

'The trade id of the block trade. This is used by each one of the allocated trades to reference the block trade.'

</...>

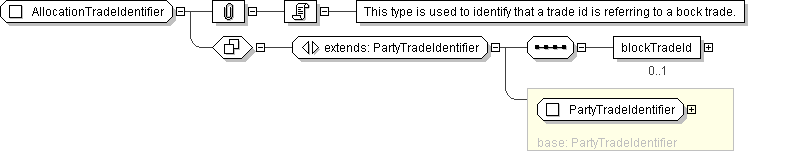

Schema Component Representation

<xsd:complexType name="AllocationTradeIdentifier">

<xsd:complexContent>

<xsd:extension base=" PartyTradeIdentifier ">

<xsd:sequence>

<xsd:element name="blockTradeId" type=" PartyTradeIdentifier " minOccurs="0"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.

Complex Type: AllocationTradeIdentifier
