XML Schema Documentation

Complex Type: DirectionalLeg

[Table of contents]

Super-types: Leg < DirectionalLeg (by extension)
Sub-types:
Name DirectionalLeg
Abstract yes
Documentation An abstract base class for all directional leg types with effective date, termination date, where a payer makes a stream of payments of greater than zero value to a receiver.
XML Instance Representation
<...
id=" xsd:ID [0..1]">
<payerPartyReference> PartyOrAccountReference </payerPartyReference> [1]

'A reference to the party responsible for making the payments defined by this structure.'

<receiverPartyReference> PartyOrAccountReference </receiverPartyReference> [1]

'A reference to the party that receives the payments corresponding to this structure.'

<effectiveDate> AdjustableOrRelativeDate </effectiveDate> [0..1]

'Specifies the effective date of this leg of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDate component), this element will typically point to the effective date of the other leg of the swap.'

<terminationDate> AdjustableOrRelativeDate </terminationDate> [0..1]

'Specifies the termination date of this leg of the swap. When defined in relation to a date specified somewhere else in the document (through the relativeDate component), this element will typically point to the termination date of the other leg of the swap.'

</...>

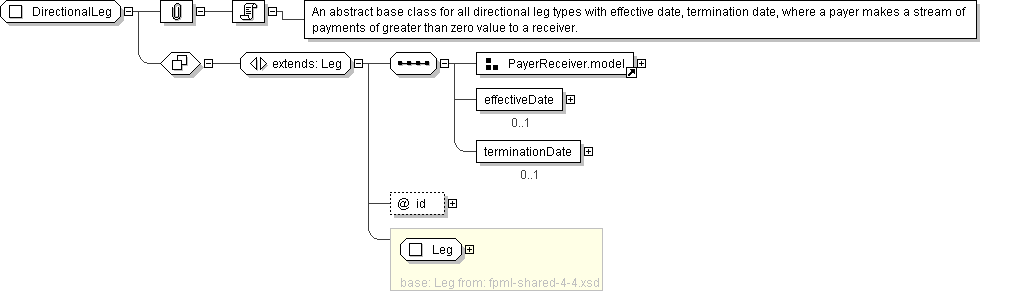

Diagram
Schema Component Representation
<xsd:complexType name="DirectionalLeg" abstract="true">
<xsd:complexContent>
<xsd:extension base=" Leg ">
<xsd:sequence>
<xsd:group ref=" PayerReceiver.model "/>
<xsd:element name="effectiveDate" type=" AdjustableOrRelativeDate " minOccurs="0"/>
<xsd:element name="terminationDate" type=" AdjustableOrRelativeDate " minOccurs="0"/>
</xsd:sequence>
<xsd:attribute name="id" type=" xsd:ID "/>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
