XML Schema Documentation

Complex Type: AdjustableDate

[Table of contents]

Super-types:	None
Sub-types:	None

Name	AdjustableDate
Used by (from the same schema document)	Complex Type AdjustableOrRelativeDate , Complex Type Payment
Abstract	no
Documentation	A type for defining a date that shall be subject to adjustment if it would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the date.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<unadjustedDate> IdentifiedDate </unadjustedDate> [1]

'A date subject to adjustment.'

<dateAdjustments> BusinessDayAdjustments </dateAdjustments> [1]

'The business day convention and financial business centers used for adjusting the date if it would otherwise fall on a day that is not a business date in the specified business centers.'

</...>

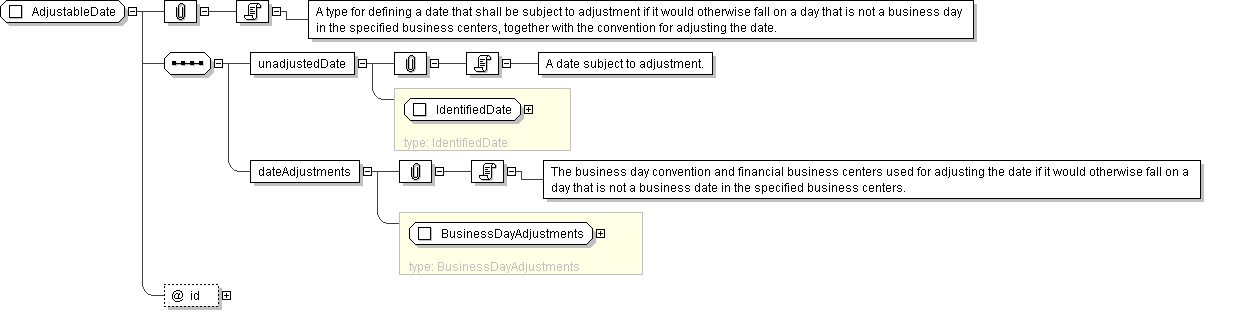

Diagram

Schema Component Representation

<xsd:complexType name="AdjustableDate">

<xsd:sequence>

<xsd:element name="unadjustedDate" type=" IdentifiedDate "/>

<xsd:element name="dateAdjustments" type=" BusinessDayAdjustments "/>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>
