XML Schema Documentation

Complex Type: AdjustableOrRelativeDate

[Table of contents]

Super-types:	None
Sub-types:	AdjustableOrRelativeAndAdjustedDate (by extension)

Name	AdjustableOrRelativeDate
Used by (from the same schema document)	Complex Type AmericanExercise , Complex Type AmericanExercise , Complex Type EuropeanExercise , Complex Type PaymentBase , Complex Type PeriodicDates , Complex Type PeriodicDates , Complex Type SharedAmericanExercise , Complex Type SharedAmericanExercise , Complex Type Stub , Complex Type Stub
Abstract	no
Documentation	A type giving the choice between defining a date as an explicit date together with applicable adjustments or as relative to some other (anchor) date.

XML Instance Representation

<...
id=" xsd:ID [0..1]">
Start Choice [1]

<adjustableDate> AdjustableDate </adjustableDate> [1]

'A date that shall be subject to adjustment if it would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the date.'

<relativeDate> RelativeDateOffset </relativeDate> [1]

'A date specified as some offset to another date (the anchor date).'

End Choice
</...>

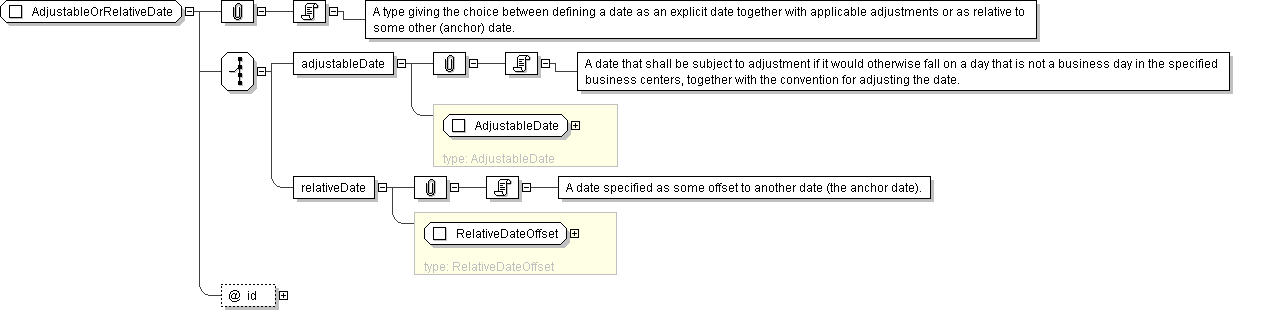

Diagram

Schema Component Representation

<xsd:complexType name="AdjustableOrRelativeDate">

<xsd:choice>

<xsd:element name="adjustableDate" type=" AdjustableDate "/>

<xsd:element name="relativeDate" type=" RelativeDateOffset "/>

</xsd:choice>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>
