XML Schema Documentation

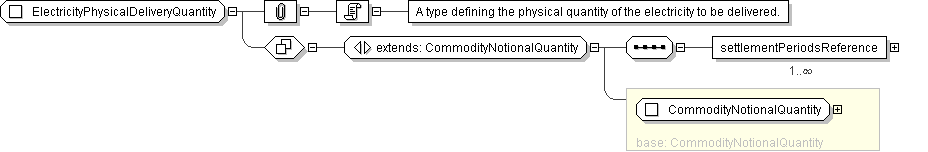

Super-types:	CommodityNotionalQuantity < ElectricityPhysicalDeliveryQuantity (by extension)
Sub-types:	None

Name	ElectricityPhysicalDeliveryQuantity
Used by (from the same schema document)	Complex Type ElectricityPhysicalQuantity
Abstract	no
Documentation	A type defining the physical quantity of the electricity to be delivered.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<quantityUnit> QuantityUnit </quantityUnit> [1]

'Quantity Unit is the unit of measure applicable for the quantity on the Transaction.'

<quantityFrequency> CommodityQuantityFrequency </quantityFrequency> [1]

'The frequency at which the Notional Quantity is deemed to apply for purposes of calculating the Total Notional Quantity.'

<quantity> xsd:decimal </quantity> [1]

'Amount of commodity per quantity frequency.'

<settlementPeriodsReference> SettlementPeriodsReference </settlementPeriodsReference> [1..*]

'A pointer style reference to the range(s) of Settlement Periods to which this quantity applies.'

</...>

Schema Component Representation

<xsd:complexType name="ElectricityPhysicalDeliveryQuantity">

<xsd:complexContent>

<xsd:extension base=" CommodityNotionalQuantity ">

<xsd:sequence>

<xsd:element name="settlementPeriodsReference" type=" SettlementPeriodsReference " maxOccurs="unbounded"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
