XML Schema Documentation

Super-types:	None
Sub-types:	CommoditySettlementPeriodsNotionalQuantity (by extension) ElectricityPhysicalDeliveryQuantity (by extension)

Name	CommodityNotionalQuantity
Used by (from the same schema document)	Complex Type CommodityMultipleExercise , Complex Type CommodityMultipleExercise , Complex Type CommodityNotionalQuantitySchedule , Complex Type CommodityPhysicalQuantitySchedule , Complex Type CommoditySettlementPeriodsNotionalQuantitySchedule , Complex Type GasPhysicalQuantity , Complex Type GasPhysicalQuantity , Model Group CommodityFixedPhysicalQuantity.model , Model Group CommodityNotionalQuantity.model
Abstract	no
Documentation	Commodity Notional.

XML Instance Representation

<...
id=" xsd:ID [0..1]">

<quantityUnit> QuantityUnit </quantityUnit> [1]

'Quantity Unit is the unit of measure applicable for the quantity on the Transaction.'

<quantityFrequency> CommodityQuantityFrequency </quantityFrequency> [1]

'The frequency at which the Notional Quantity is deemed to apply for purposes of calculating the Total Notional Quantity.'

<quantity> xsd:decimal </quantity> [1]

'Amount of commodity per quantity frequency.'

</...>

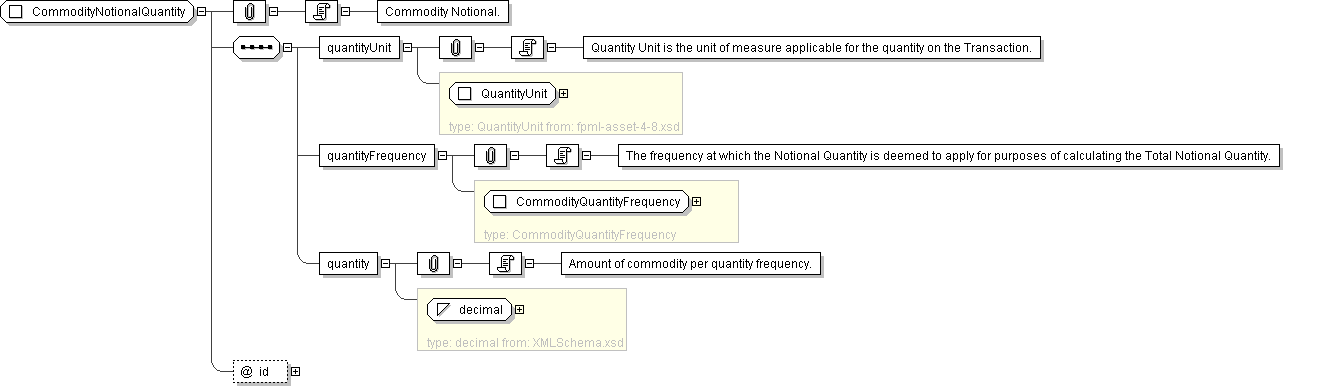

Diagram

Schema Component Representation

<xsd:complexType name="CommodityNotionalQuantity">

<xsd:sequence>

<xsd:element name="quantityUnit" type=" QuantityUnit "/>

<xsd:element name="quantityFrequency" type=" CommodityQuantityFrequency "/>

<xsd:element name="quantity" type=" xsd:decimal "/>

</xsd:sequence>

<xsd:attribute name="id" type=" xsd:ID "/>

</xsd:complexType>
