XML Schema Documentation

Super-types:	CommodityPhysicalQuantityBase < GasPhysicalQuantity (by extension)
Sub-types:	None

Name	GasPhysicalQuantity
Used by (from the same schema document)	Complex Type GasPhysicalLeg
Abstract	no
Documentation	The quantity of gas to be delivered.

XML Instance Representation

<...
id=" xsd:ID [0..1]">
Start Choice [1]
Start Choice [1]

<physicalQuantity> CommodityNotionalQuantity </physicalQuantity> [1]

'The Quantity per Delivery Period.'

<physicalQuantitySchedule> CommodityPhysicalQuantitySchedule </physicalQuantitySchedule> [1]

'Allows the documentation of a shaped quantity trade where the quantity changes over the life of the transaction.'

End Choice

<totalPhysicalQuantity> UnitQuantity </totalPhysicalQuantity> [0..1]

'The Total Quantity of the commodity to be delivered.'

<minPhysicalQuantity> CommodityNotionalQuantity </minPhysicalQuantity> [1..*]

'The minimum quantity to be delivered. If separate minimums need to be specified for different periods (e.g. a minimum per day and a minimum per month) this element should be repeated.'

<maxPhysicalQuantity> CommodityNotionalQuantity </maxPhysicalQuantity> [1..*]

'The maximum quantity to be delivered. If separate minimums need to be specified for different periods (e.g. a minimum per day and a minimum per month) this element should be repeated.'

<electingParty> PartyReference </electingParty> [0..1]

'Indicates the party able to choose whether the gas is delivered for a particular period e.g. a swing or interruptible contract.'

End Choice
</...>

Schema Component Representation

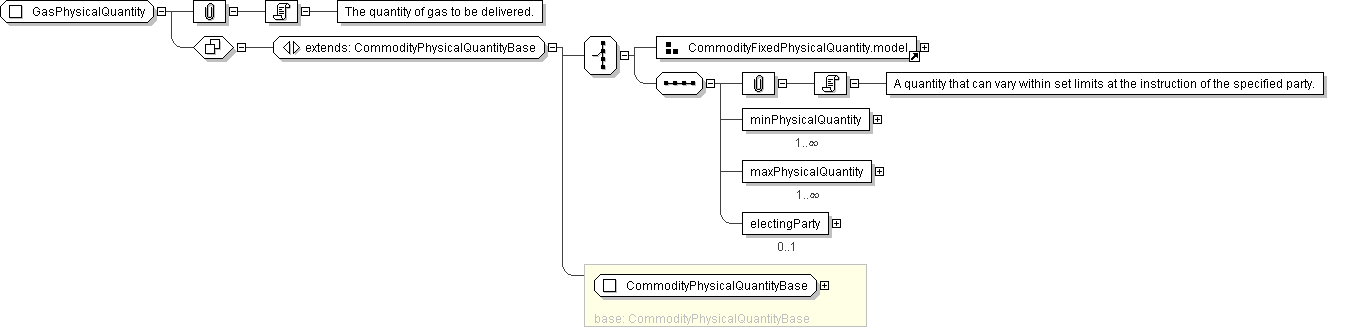

<xsd:complexType name="GasPhysicalQuantity">

<xsd:complexContent>

<xsd:extension base=" CommodityPhysicalQuantityBase ">

<xsd:choice>

<xsd:group ref=" CommodityFixedPhysicalQuantity.model "/>

<xsd:sequence>

<xsd:element name="minPhysicalQuantity" type=" CommodityNotionalQuantity " maxOccurs="unbounded"/>

<xsd:element name="maxPhysicalQuantity" type=" CommodityNotionalQuantity " maxOccurs="unbounded"/>

<xsd:element name="electingParty" type=" PartyReference " minOccurs="0"/>

</xsd:sequence>

</xsd:choice>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support.
