element <loanTradeFeeDue> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LoanTradeTransferFeeDueEvent
Content:
complex, 9 elements
Subst.Gr:
may substitute for element loanTradeEventGroup
Defined:
globally in fpml-loan-5-11.xsd; see XML source
Used:
never

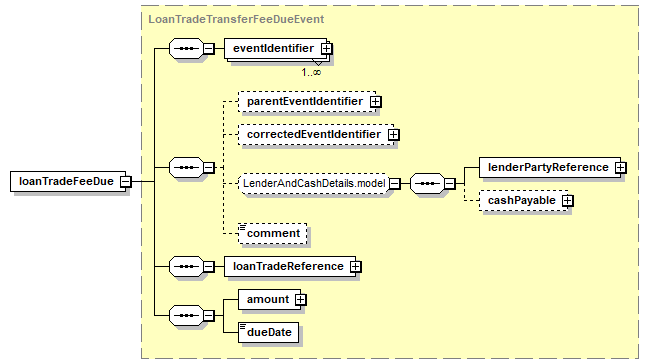

Content Model Diagram
XML Representation Summary
<loanTradeFeeDue>

Content:
eventIdentifier+, parentEventIdentifier?, correctedEventIdentifier?, (lenderPartyReference, cashPayable?)?, comment?, loanTradeReference, amount, dueDate
</loanTradeFeeDue>
Content model elements (9):
amount (in loanTradeFeeDue),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
dueDate (in loanTradeFeeDue),
eventIdentifier (defined in AbstractEventRequireId complexType),
lenderPartyReference,
loanTradeReference (defined in AbstractLoanTradeEvent complexType),
parentEventIdentifier
May be included in elements by substitutions (1):
loanTradeNotification
XML Source (see within schema source)
<xsd:element name="loanTradeFeeDue" substitutionGroup="loanTradeEventGroup" type="LoanTradeTransferFeeDueEvent"/>
