element <ds:Signature> (global)
Namespace:
http://www.w3.org/2000/09/xmldsig#
Type:
ds:SignatureType
Content:
complex, 1 attribute, 4 elements
Defined:
globally in xmldsig-core-schema.xsd; see XML source
Used:
at 1 location

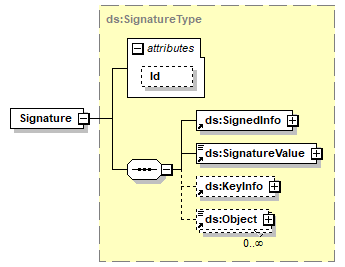

Content Model Diagram
XML Representation Summary
<ds:Signature

Id
 =
ID

>

Content:
ds:SignedInfo, ds:SignatureValue, ds:KeyInfo?, ds:Object*
</ds:Signature>
Content model elements (4):
ds:KeyInfo, ds:Object, ds:SignatureValue, ds:SignedInfo
Included in content model of elements (9):
header (defined in AddressedMessage complexType),
header (defined in Exception complexType),
header (defined in NotificationMessage complexType),
header (defined in RegulatoryReportingStatusMessage complexType),
header (defined in RegulatoryReportingStatusMessage complexType),
header (defined in RegulatoryReportingStatusMessage complexType),
header (defined in RequestMessage complexType),
header (defined in ResponseMessage complexType),
header (in loanNotificationAcknowledgement)
Known Usage Locations
XML Source (see within schema source)
<element name="Signature" type="ds:SignatureType"/>
XML schema documentation generated with DocFlex/XML 1.10b5 using DocFlex/XML XSDDoc 2.8.1 template set. All content model diagrams generated by Altova XMLSpy via DocFlex/XML XMLSpy Integration.
