element <security> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
GenericSecurity
Content:
complex, 1 attribute, 6 elements
Defined:
globally in fpml-asset-5-11.xsd; see XML source
Used:
at 1 location

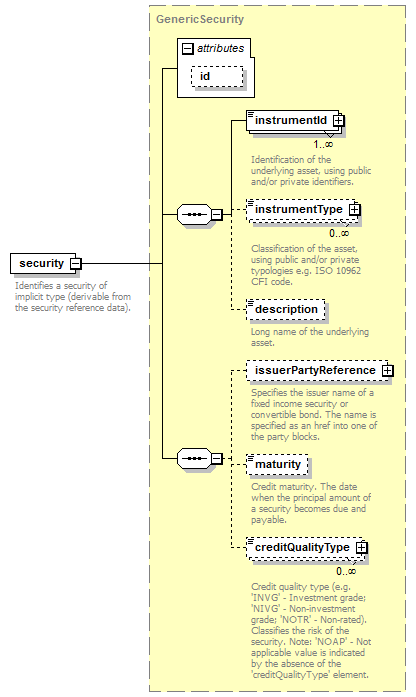

Content Model Diagram
XML Representation Summary
<security

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, issuerPartyReference?, maturity?, creditQualityType*
</security>
Content model elements (6):
description (defined in IdentifiedAsset complexType),
instrumentId (defined in IdentifiedAsset complexType),
Included in content model of elements (1):
principal (in securityLending)
Known Usage Locations
Annotation
Identifies a security of implicit type (derivable from the security reference data).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="security" type="GenericSecurity"/>
