group "PostTradeEventsBase.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
8 elements
Defined:
globally in fpml-business-events-5-11.xsd; see XML source
Includes:
definitions of 8 elements
Used:
at 7 locations

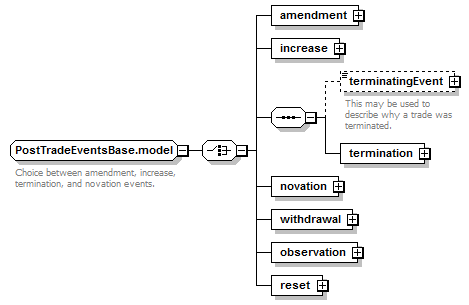

Content Model Diagram
Complex Content Model
amendment | increase | (terminatingEvent?, termination) | novation | withdrawal | observation | reset
Content Model Elements (8):
amendment (defined in PostTradeEventsBase.model group),
increase,
novation,
observation (defined in PostTradeEventsBase.model group),
reset,
terminatingEvent (defined in PostTradeEventsBase.model group),
termination (defined in PostTradeEventsBase.model group),
withdrawal
Known Usage Locations
Annotation
Choice between amendment, increase, termination, and novation events.
XML Source (w/o annotations (2); see within schema source)
<xsd:group name="PostTradeEventsBase.model">
<xsd:choice>
<xsd:element name="amendment" type="TradeAmendmentContent"/>
<xsd:element name="increase" type="TradeNotionalChange"/>
<xsd:sequence>
<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>
<xsd:element name="termination" type="TradeNotionalChange"/>
</xsd:sequence>
<xsd:element name="novation" type="TradeNovationContent"/>
<xsd:element name="withdrawal" type="Withdrawal"/>
<xsd:element name="observation" type="ObservationEvent"/>
<xsd:element name="reset" type="ResetEvent"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 8/8)
amendment
Type:
TradeAmendmentContent, complex content
XML Source (see within schema source)
<xsd:element name="amendment" type="TradeAmendmentContent"/>
increase
Type:
TradeNotionalChange, complex content
XML Source (see within schema source)
<xsd:element name="increase" type="TradeNotionalChange"/>
novation
Type:
TradeNovationContent, complex content
XML Source (see within schema source)
<xsd:element name="novation" type="TradeNovationContent"/>
observation
Type:
ObservationEvent, complex content
XML Source (see within schema source)
<xsd:element name="observation" type="ObservationEvent"/>
reset
Type:
ResetEvent, complex content
XML Source (see within schema source)
<xsd:element name="reset" type="ResetEvent"/>
terminatingEvent
Type:
TerminatingEvent, simple content
This may be used to describe why a trade was terminated.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="terminatingEvent" type="TerminatingEvent"/>
termination
Type:
TradeNotionalChange, complex content
XML Source (see within schema source)
<xsd:element name="termination" type="TradeNotionalChange"/>
withdrawal
Type:
Withdrawal, complex content
XML Source (see within schema source)
<xsd:element name="withdrawal" type="Withdrawal"/>
