group "TradeNotionalChange.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	6 elements
Defined:	globally in fpml-business-events-5-11.xsd; see XML source
Includes:	definitions of 6 elements
Used:	at 1 location

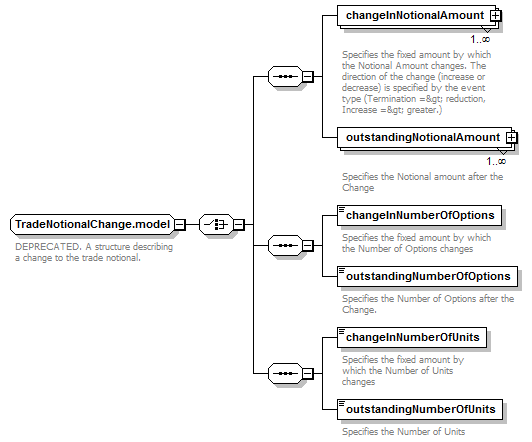

Content Model Diagram

Complex Content Model

(changeInNotionalAmount+, outstandingNotionalAmount+) | (changeInNumberOfOptions, outstandingNumberOfOptions) | (changeInNumberOfUnits, outstandingNumberOfUnits)

Content Model Elements (6):

changeInNotionalAmount (defined in TradeNotionalChange.model group),

changeInNumberOfOptions (defined in TradeNotionalChange.model group),

changeInNumberOfUnits (defined in TradeNotionalChange.model group),

outstandingNotionalAmount (defined in TradeNotionalChange.model group),

outstandingNumberOfOptions (defined in TradeNotionalChange.model group),

outstandingNumberOfUnits (defined in TradeNotionalChange.model group)

Known Usage Locations

In definitions of global complexTypes (1):

TradeNotionalChange

Annotation

DEPRECATED. A structure describing a change to the trade notional.

XML Source (w/o annotations (7); see within schema source)

<xsd:group fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="The model could not provide support for linking notionals with product legs. Also, there was limitation in the existing increase and termination events which don’t allow the reporting of both change of units or change of notional amount as required for dividend swaps, for example. Instead, sizeChange, should be used." name="TradeNotionalChange.model">

<xsd:choice>

<xsd:sequence>

<xsd:element maxOccurs="unbounded" name="changeInNotionalAmount" type="NonNegativeMoney"/>

<xsd:element maxOccurs="unbounded" name="outstandingNotionalAmount" type="NonNegativeMoney"/>

</xsd:sequence>

<xsd:sequence>

<xsd:element name="changeInNumberOfOptions" type="xsd:decimal"/>

<xsd:element name="outstandingNumberOfOptions" type="xsd:decimal"/>

</xsd:sequence>

<xsd:sequence>

<xsd:element name="changeInNumberOfUnits" type="xsd:decimal"/>

<xsd:element name="outstandingNumberOfUnits" type="xsd:decimal"/>

</xsd:sequence>

</xsd:choice>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 6/6)

changeInNotionalAmount

Type:

NonNegativeMoney, complex content

Specifies the fixed amount by which the Notional Amount changes. The direction of the change (increase or decrease) is specified by the event type (Termination => reduction, Increase => greater.)
