group "TradingEvents.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	4 elements
Defined:	globally in fpml-business-events-5-11.xsd; see XML source
Includes:	definition of 1 element
Used:	at 9 locations

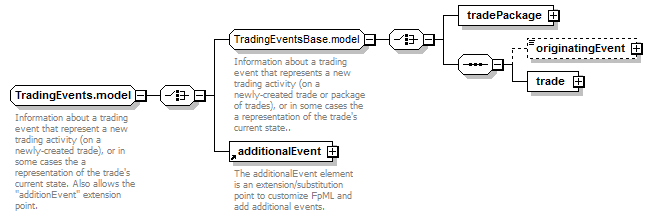

Content Model Diagram

Complex Content Model

tradePackage | (originatingEvent?, trade) | additionalEvent

Content Model Elements (4):

additionalEvent,

originatingEvent (defined in TradingEventsBase.model group),

trade (defined in TradingEventsBase.model group),

tradePackage (defined in TradingEventsBase.model group)

Known Usage Locations

In definitions of other model groups (1):

ClearingResults.model
In definitions of global complexTypes (8):

ClearingEligibility, ClearingRefused, ExecutionRetracted, RequestClearing, RequestClearingEligibility, RequestClearingRetracted, RequestExecution, RequestExecutionRetracted

Annotation

Information about a trading event that represent a new trading activity (on a newly-created trade), or in some cases the a representation of the trade's current state. Also allows the "additionEvent" extension point.

XML Source (w/o annotations (1); see within schema source)

<xsd:group name="TradingEvents.model">

<xsd:choice>

<xsd:group ref="TradingEventsBase.model"/>

<xsd:element ref="additionalEvent"/>

</xsd:choice>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 1/4)

additionalEvent

Type:	AdditionalEvent, complex content
Abstract:	(may not be used directly in instance XML documents)

XML Source (see within schema source)

<xsd:element ref="additionalEvent"/>

XML schema documentation generated with DocFlex/XML 1.10b5 using DocFlex/XML XSDDoc 2.8.1 template set. All content model diagrams generated by Altova XMLSpy via DocFlex/XML XMLSpy Integration.
