element <pricingDates> (local) | XML Schema Documentation

element <pricingDates> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	CommodityPricingDates
Content:	complex, 1 attribute, 15 elements
Defined:	locally within CommodityAsian.model group in fpml-com-5-11.xsd; see XML source

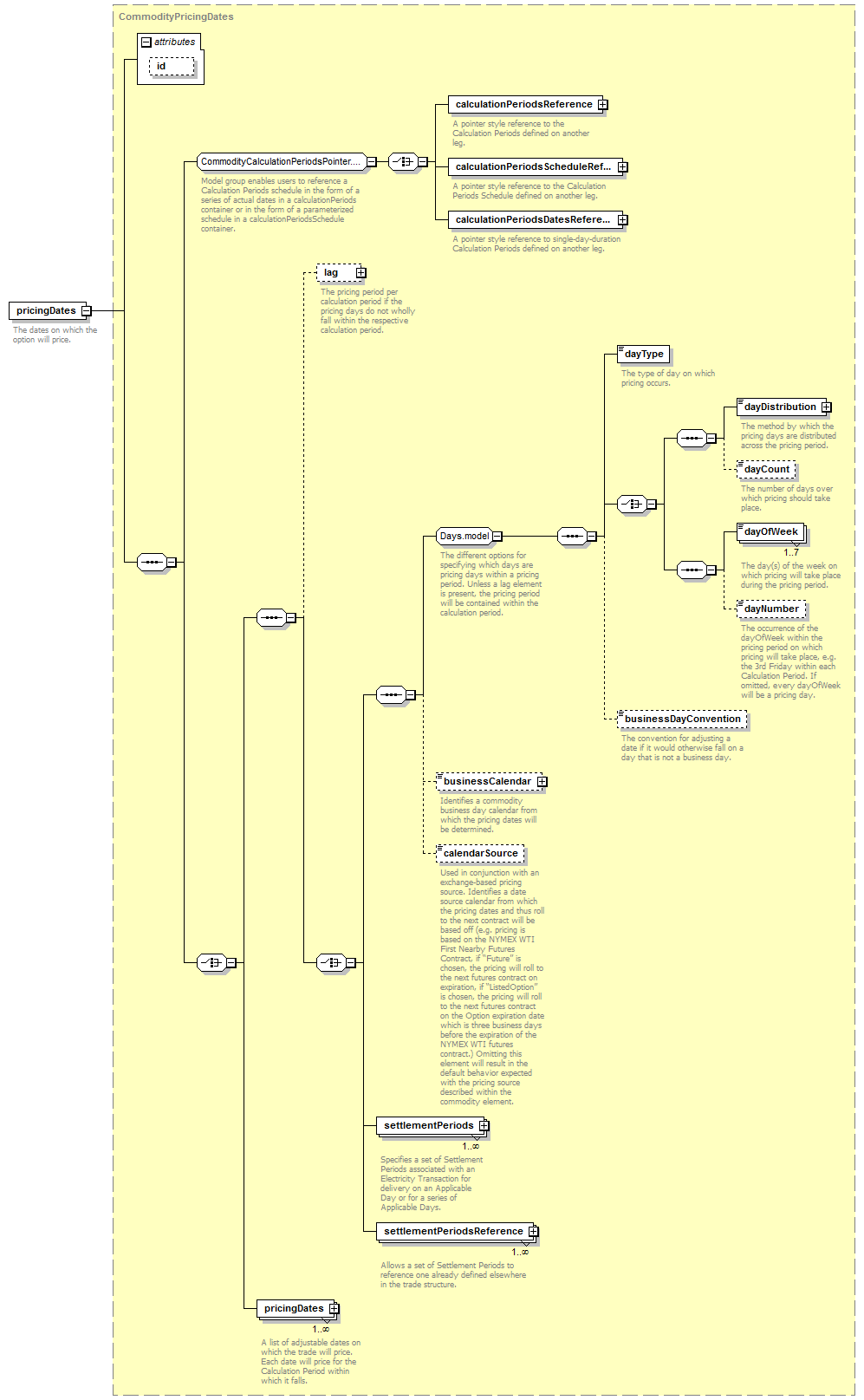

Content Model Diagram

XML Representation Summary

<pricingDates

=

xsd:ID

>

Content:

(calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference), ((lag?, ((dayType, ((dayDistribution, dayCount?) | (dayOfWeek[1..7], dayNumber?)), businessDayConvention?, businessCalendar?, calendarSource?) | settlementPeriods+ | settlementPeriodsReference+)) | pricingDates+)

</pricingDates>

Content model elements (15):

businessCalendar (defined in CommodityPricingDates complexType),

businessDayConvention (defined in Days.model group),

calculationPeriodsDatesReference,

calculationPeriodsReference,

calculationPeriodsScheduleReference,

calendarSource (defined in CommodityPricingDates complexType),

dayDistribution,

dayType (defined in Days.model group),

lag (defined in CommodityPricingDates complexType),

pricingDates (defined in CommodityPricingDates complexType),

settlementPeriods (defined in CommodityPricingDates complexType),

settlementPeriodsReference (defined in CommodityPricingDates complexType)

Included in content model of elements (2):

commodityDigitalOption, commodityOption

Annotation

The dates on which the option will price.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="pricingDates" type="CommodityPricingDates"/>
