group "CommodityFreightFlatRate.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
2 elements
Defined:
globally in fpml-com-5-11.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 2 locations

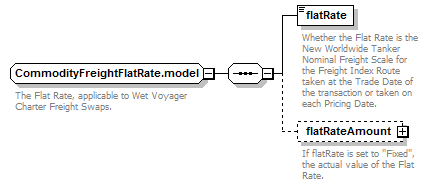

Content Model Diagram
Complex Content Model
flatRate, flatRateAmount?
Content Model Elements (2):
flatRate, flatRateAmount
Known Usage Locations
Annotation
The Flat Rate, applicable to Wet Voyager Charter Freight Swaps.
XML Source (w/o annotations (3); see within schema source)
<xsd:group name="CommodityFreightFlatRate.model">
<xsd:sequence>
<xsd:element name="flatRate" type="FlatRateEnum"/>
<xsd:element minOccurs="0" name="flatRateAmount" type="NonNegativeMoney"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/2)
flatRate
Type:
FlatRateEnum, simple content
Whether the Flat Rate is the New Worldwide Tanker Nominal Freight Scale for the Freight Index Route taken at the Trade Date of the transaction or taken on each Pricing Date.
Simple Content
enumeration of xsd:token
Enumeration:
"Fixed"
 -
The Flat Rate will be the New Worldwide Tanker Nominal Freight Scale for the Freight Index Route for the Trade Date for the transaction.
See:  http://www.FpML.org
"Floating"
 -
The Flat Rate for each Pricing Date will be the New Worldwide Tanker Nominal Freight Scale for the Freight Index Route for the Pricing Date..
See:  http://www.FpML.org
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="flatRate" type="FlatRateEnum"/>
flatRateAmount
Type:
NonNegativeMoney, complex content
If flatRate is set to "Fixed", the actual value of the Flat Rate.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="flatRateAmount" type="NonNegativeMoney"/>
