group "CommodityNonPeriodicPaymentDates.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
2 elements
Defined:
globally in fpml-com-5-11.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

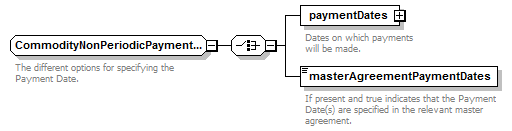

Content Model Diagram
Complex Content Model
paymentDates | masterAgreementPaymentDates
Content Model Elements (2):
masterAgreementPaymentDates,
paymentDates (defined in CommodityNonPeriodicPaymentDates.model group)
Known Usage Locations
Annotation
The different options for specifying the Payment Date.
XML Source (w/o annotations (3); see within schema source)
<xsd:group name="CommodityNonPeriodicPaymentDates.model">
<xsd:choice>
<xsd:element name="paymentDates" type="AdjustableDatesOrRelativeDateOffset"/>
<xsd:element name="masterAgreementPaymentDates" type="xsd:boolean"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/2)
masterAgreementPaymentDates
Type:
xsd:boolean, predefined, simple content
If present and true indicates that the Payment Date(s) are specified in the relevant master agreement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="masterAgreementPaymentDates" type="xsd:boolean"/>
paymentDates
Type:
AdjustableDatesOrRelativeDateOffset, complex content
Dates on which payments will be made.
XML Source (w/o annotations (1); see within schema source)
