group "CommodityUSCoalDelivery.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	3 elements
Defined:	globally in fpml-com-5-11.xsd; see XML source
Includes:	definitions of 3 elements
Used:	at 1 location

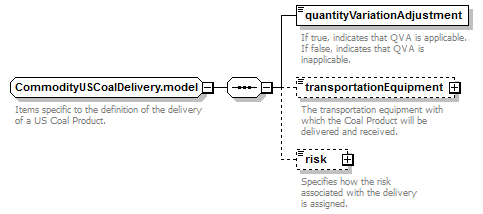

Content Model Diagram

Complex Content Model

Content Model Elements (3):

Known Usage Locations

Annotation

Items specific to the definition of the delivery of a US Coal Product.

XML Source (w/o annotations (4); see within schema source)

<xsd:sequence>

<xsd:element name="quantityVariationAdjustment" type="xsd:boolean"/>

<xsd:element minOccurs="0" name="risk" type="CommodityDeliveryRisk"/>

</xsd:sequence>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 3/3)

Type:

xsd:boolean, predefined, simple content

If true, indicates that QVA is applicable. If false, indicates that QVA is inapplicable.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="quantityVariationAdjustment" type="xsd:boolean"/>

Type:

Specifies how the risk associated with the delivery is assigned.

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="risk" type="CommodityDeliveryRisk"/>

Type:

The transportation equipment with which the Coal Product will be delivered and received.

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (w/o annotations (1); see within schema source)
