element <commodityBasket> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CommodityBasket
Content:
complex, 5 elements
Defined:
locally within CommodityUnderlyerChoice.model group in fpml-com-5-11.xsd; see XML source

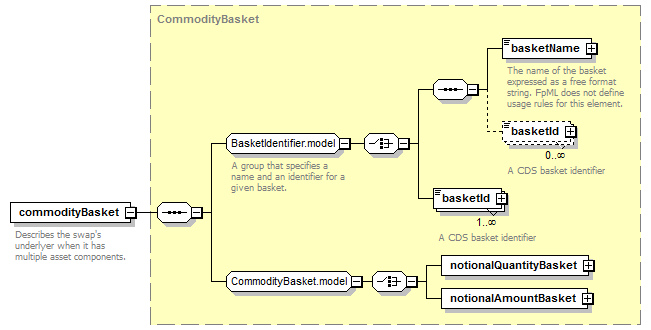

Content Model Diagram
XML Representation Summary
<commodityBasket>

Content:
((basketName, basketId*) | basketId+), (notionalQuantityBasket | notionalAmountBasket)
</commodityBasket>
Content model elements (5):
basketId (defined in BasketIdentifier.model group),
basketId (defined in BasketIdentifier.model group),
Included in content model of elements (2):
commodityReturnLeg, commodityVarianceLeg
Annotation
Describes the swap's underlyer when it has multiple asset components.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodityBasket" type="CommodityBasket"/>
