element <commodityVarianceLeg> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CommodityVarianceLeg
Content:
complex, 1 attribute, 20 elements
Subst.Gr:
may substitute for element commodityPerformanceSwapLeg
Defined:
globally in fpml-com-5-11.xsd; see XML source
Used:
never

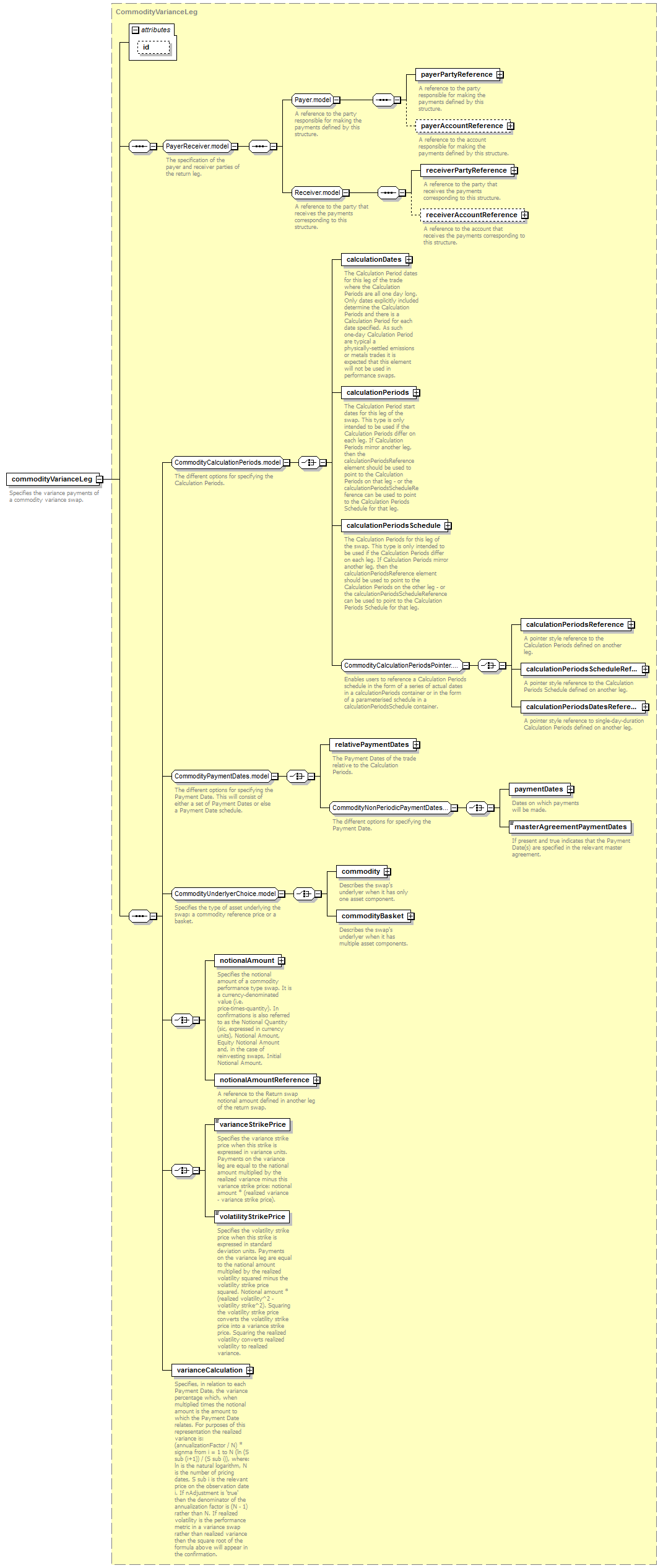

Content Model Diagram
XML Representation Summary
<commodityVarianceLeg

id
 =
xsd:ID

>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, (calculationDates | calculationPeriods | calculationPeriodsSchedule | calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference), (relativePaymentDates | paymentDates | masterAgreementPaymentDates), (commodity | commodityBasket), (notionalAmount | notionalAmountReference), (varianceStrikePrice | volatilityStrikePrice), varianceCalculation
</commodityVarianceLeg>
Content model elements (20):
calculationDates (defined in CommodityCalculationPeriods.model group),
calculationPeriods (defined in CommodityCalculationPeriods.model group),
calculationPeriodsDatesReference,
calculationPeriodsReference,
calculationPeriodsSchedule (defined in CommodityCalculationPeriods.model group),
calculationPeriodsScheduleReference,
commodity (defined in CommodityUnderlyerChoice.model group),
commodityBasket,
masterAgreementPaymentDates,
notionalAmount (in commodityVarianceLeg),
notionalAmountReference (in commodityVarianceLeg),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
paymentDates (defined in CommodityNonPeriodicPaymentDates.model group),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
relativePaymentDates,
varianceCalculation,
varianceStrikePrice (in commodityVarianceLeg),
volatilityStrikePrice (in commodityVarianceLeg)
May be included in elements by substitutions (1):
commodityPerformanceSwap
Annotation
Specifies the variance payments of a commodity variance swap.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodityVarianceLeg" substitutionGroup="commodityPerformanceSwapLeg" type="CommodityVarianceLeg"/>
