group "GlobalTradeIdentifiers.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-doc-5-11.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

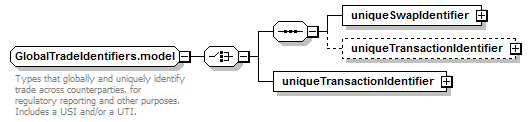

Content Model Diagram
Complex Content Model
(uniqueSwapIdentifier, uniqueTransactionIdentifier?) | uniqueTransactionIdentifier
Content Model Elements (3):
Known Usage Locations
Annotation
Types that globally and uniquely identify trade across counterparties, for regulatory reporting and other purposes. Includes a USI and/or a UTI.
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="GlobalTradeIdentifiers.model">
<xsd:choice>
<xsd:sequence>
<xsd:element name="uniqueSwapIdentifier" type="IssuerTradeId"/>
<xsd:element minOccurs="0" name="uniqueTransactionIdentifier" type="IssuerTradeId"/>
</xsd:sequence>
<xsd:element name="uniqueTransactionIdentifier" type="IssuerTradeId"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
uniqueSwapIdentifier
Type:
IssuerTradeId, complex content
XML Source (see within schema source)
<xsd:element name="uniqueSwapIdentifier" type="IssuerTradeId"/>
uniqueTransactionIdentifier
Type:
IssuerTradeId, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="uniqueTransactionIdentifier" type="IssuerTradeId"/>
uniqueTransactionIdentifier
Type:
IssuerTradeId, complex content
XML Source (see within schema source)
<xsd:element name="uniqueTransactionIdentifier" type="IssuerTradeId"/>
