group "TransactionClassification.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
5 elements
Defined:
globally in fpml-doc-5-11.xsd; see XML source
Includes:
definitions of 5 elements
Used:
at 1 location

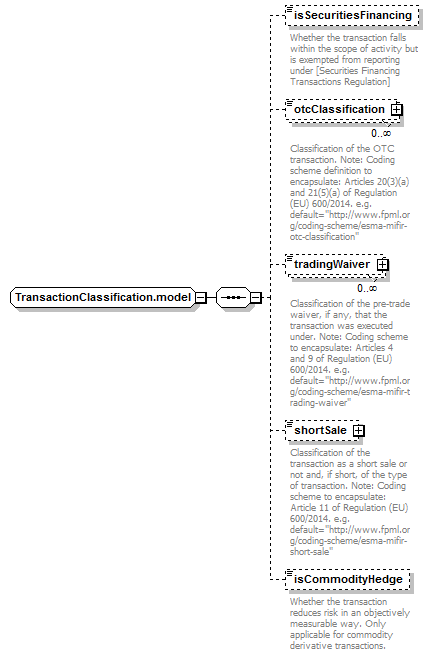

Content Model Diagram
Complex Content Model
isSecuritiesFinancing?, otcClassification*, tradingWaiver*, shortSale?, isCommodityHedge?
Content Model Elements (5):
isCommodityHedge, isSecuritiesFinancing, otcClassification, shortSale, tradingWaiver
Known Usage Locations
XML Source (w/o annotations (5); see within schema source)
<xsd:group name="TransactionClassification.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="isSecuritiesFinancing" type="xsd:boolean"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="otcClassification" type="OtcClassification"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="tradingWaiver" type="TradingWaiver"/>
<xsd:element minOccurs="0" name="shortSale" type="ShortSale"/>
<xsd:element minOccurs="0" name="isCommodityHedge" type="xsd:boolean"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 5/5)
isCommodityHedge
Type:
xsd:boolean, predefined, simple content
Whether the transaction reduces risk in an objectively measurable way. Only applicable for commodity derivative transactions.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="isCommodityHedge" type="xsd:boolean"/>
isSecuritiesFinancing
Type:
xsd:boolean, predefined, simple content
Whether the transaction falls within the scope of activity but is exempted from reporting under [Securities Financing Transactions Regulation]
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="isSecuritiesFinancing" type="xsd:boolean"/>
otcClassification
Type:
OtcClassification, simple content
Classification of the OTC transaction. Note: Coding scheme definition to encapsulate: Articles 20(3)(a) and 21(5)(a) of Regulation (EU) 600/2014. e.g. default="http://www.fpml.org/coding-scheme/esma-mifir-otc-classification"
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="otcClassification" type="OtcClassification"/>
shortSale
Type:
ShortSale, simple content
Classification of the transaction as a short sale or not and, if short, of the type of transaction. Note: Coding scheme to encapsulate: Article 11 of Regulation (EU) 600/2014. e.g. default="http://www.fpml.org/coding-scheme/esma-mifir-short-sale"
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="shortSale" type="ShortSale"/>
tradingWaiver
Type:
TradingWaiver, simple content
Classification of the pre-trade waiver, if any, that the transaction was executed under. Note: Coding scheme to encapsulate: Articles 4 and 9 of Regulation (EU) 600/2014. e.g. default="http://www.fpml.org/coding-scheme/esma-mifir-trading-waiver"
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="tradingWaiver" type="TradingWaiver"/>
