group "FxAccrualConditionLevel.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	5 elements
Defined:	globally in fpml-fx-accruals-5-11.xsd; see XML source
Includes:	definitions of 5 elements
Used:	at 3 locations

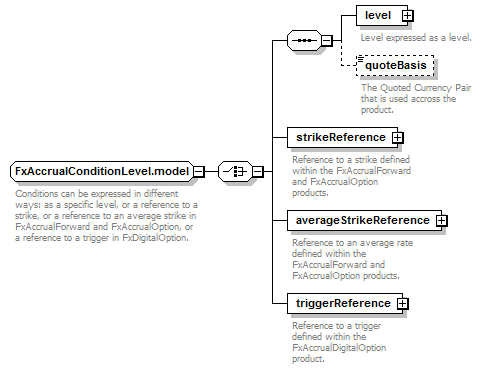

Content Model Diagram

Complex Content Model

(level, quoteBasis?) | strikeReference | averageStrikeReference | triggerReference

Content Model Elements (5):

averageStrikeReference,

level (defined in FxAccrualConditionLevel.model group),

quoteBasis (defined in FxAccrualConditionLevel.model group),

strikeReference (defined in FxAccrualConditionLevel.model group),

triggerReference

Known Usage Locations

In definitions of global complexTypes (3):

FxAccrualLeverage, FxAccrualRegionLowerBound, FxAccrualRegionUpperBound

Annotation

Conditions can be expressed in different ways: as a specific level, or a reference to a strike, or a reference to an average strike in FxAccrualForward and FxAccrualOption, or a reference to a trigger in FxDigitalOption.

XML Source (w/o annotations (6); see within schema source)

<xsd:group name="FxAccrualConditionLevel.model">

<xsd:choice>

<xsd:sequence>

<xsd:element name="level" type="FxLevel"/>

<xsd:element minOccurs="0" name="quoteBasis" type="QuoteBasisEnum"/>

</xsd:sequence>

<xsd:element name="strikeReference" type="FxAccrualStrikeReference"/>

<xsd:element name="averageStrikeReference" type="FxAccrualAverageStrikeReference"/>

<xsd:element name="triggerReference" type="FxAccrualTriggerReference"/>

</xsd:choice>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 5/5)

averageStrikeReference

Type:

FxAccrualAverageStrikeReference, empty content

Reference to an average rate defined within the FxAccrualForward and FxAccrualOption products.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="averageStrikeReference" type="FxAccrualAverageStrikeReference"/>

level

Type:

FxLevel, complex content

Level expressed as a level.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="level" type="FxLevel"/>

quoteBasis

Type:

QuoteBasisEnum, simple content

The Quoted Currency Pair that is used accross the product.

Simple Content

enumeration of xsd:token

Enumeration:

"Currency1PerCurrency2"	-	The amount of currency1 for one unit of currency2 See: http://www.FpML.org
"Currency2PerCurrency1"	-	The amount of currency2 for one unit of currency1 See: http://www.FpML.org

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="quoteBasis" type="QuoteBasisEnum"/>

strikeReference

Type:

FxAccrualStrikeReference, empty content

Reference to a strike defined within the FxAccrualForward and FxAccrualOption products.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="strikeReference" type="FxAccrualStrikeReference"/>

triggerReference

Type:

FxAccrualTriggerReference, empty content

Reference to a trigger defined within the FxAccrualDigitalOption product.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="triggerReference" type="FxAccrualTriggerReference"/>
