element <exchangedCurrency2> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxExchangedCurrency
Content:
complex, 5 elements
Defined:
locally within FxExchangedCurrency.model group in fpml-fx-targets-5-11.xsd; see XML source

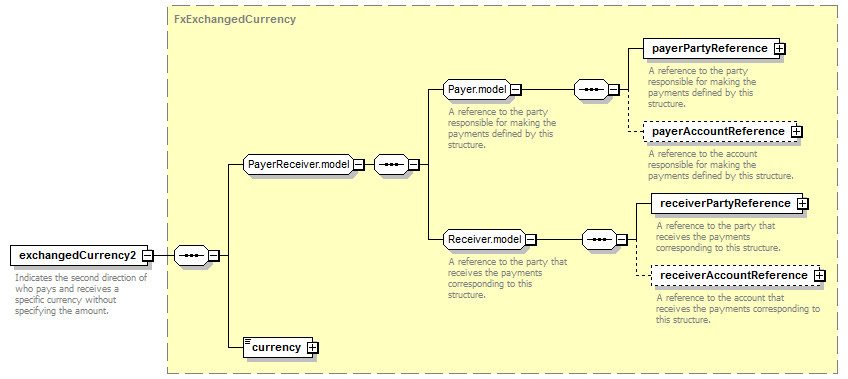

Content Model Diagram
XML Representation Summary
<exchangedCurrency2>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, currency
</exchangedCurrency2>
Content model elements (5):
currency (defined in FxExchangedCurrency complexType),
payerPartyReference (defined in Payer.model group),
Included in content model of elements (5):
linearPayoffRegion (in fxAccrualForward),
linearPayoffRegion (in fxTargetKnockoutForward),
linearPayoffRegion (in fxTargetKnockoutForward),
linearPayoffRegion (in fxTargetKnockoutForward),
physicalSettlement (defined in FxTargetConstantPayoffRegion complexType)
Annotation
Indicates the second direction of who pays and receives a specific currency without specifying the amount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exchangedCurrency2" type="FxExchangedCurrency"/>
