group "GenericOptionAttributes.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	5 elements
Defined:	globally in fpml-generic-5-11.xsd; see XML source
Includes:	definitions of 5 elements
Used:	at 1 location

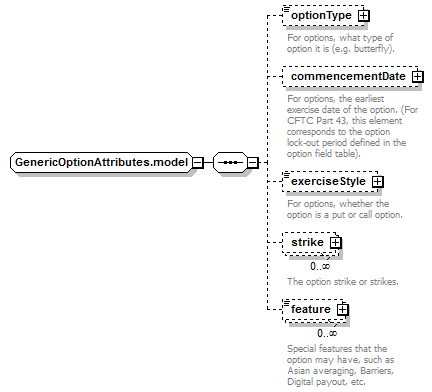

Content Model Diagram

Complex Content Model

optionType?, commencementDate?, exerciseStyle?, strike*, feature*

Content Model Elements (5):

commencementDate (in genericProduct),

exerciseStyle (in genericProduct),

feature (in genericProduct),

optionType (in genericProduct),

strike (in genericProduct)

Known Usage Locations

In definitions of global complexTypes (1):

GenericProduct

XML Source (w/o annotations (5); see within schema source)

<xsd:group name="GenericOptionAttributes.model">

<xsd:sequence>

<xsd:element minOccurs="0" name="optionType" type="OptionType"/>

<xsd:element minOccurs="0" name="commencementDate" type="AdjustableDate2"/>

<xsd:element minOccurs="0" name="exerciseStyle" type="GenericExerciseStyle"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="strike" type="GenericOptionStrike"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="feature" type="GenericProductFeature"/>

</xsd:sequence>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 5/5)

commencementDate

Type:

AdjustableDate2, complex content

For options, the earliest exercise date of the option. (For CFTC Part 43, this element corresponds to the option lock-out period defined in the option field table).

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="commencementDate" type="AdjustableDate2"/>

exerciseStyle

Type:

GenericExerciseStyle, simple content

For options, whether the option is a put or call option.

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="exerciseStyle" type="GenericExerciseStyle"/>

feature

Type:

GenericProductFeature, simple content

Special features that the option may have, such as Asian averaging, Barriers, Digital payout, etc.

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="feature" type="GenericProductFeature"/>

optionType

Type:

OptionType, simple content

For options, what type of option it is (e.g. butterfly).

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="optionType" type="OptionType"/>

strike

Type:

GenericOptionStrike, complex content

The option strike or strikes.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="strike" type="GenericOptionStrike"/>
