element <lcEventGroup> (global abstract)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AbstractLcEvent
Content:
complex, 11 elements
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
may be substituted with 7 elements
Defined:
globally in fpml-loan-5-11.xsd; see XML source
Used:
at 9 locations

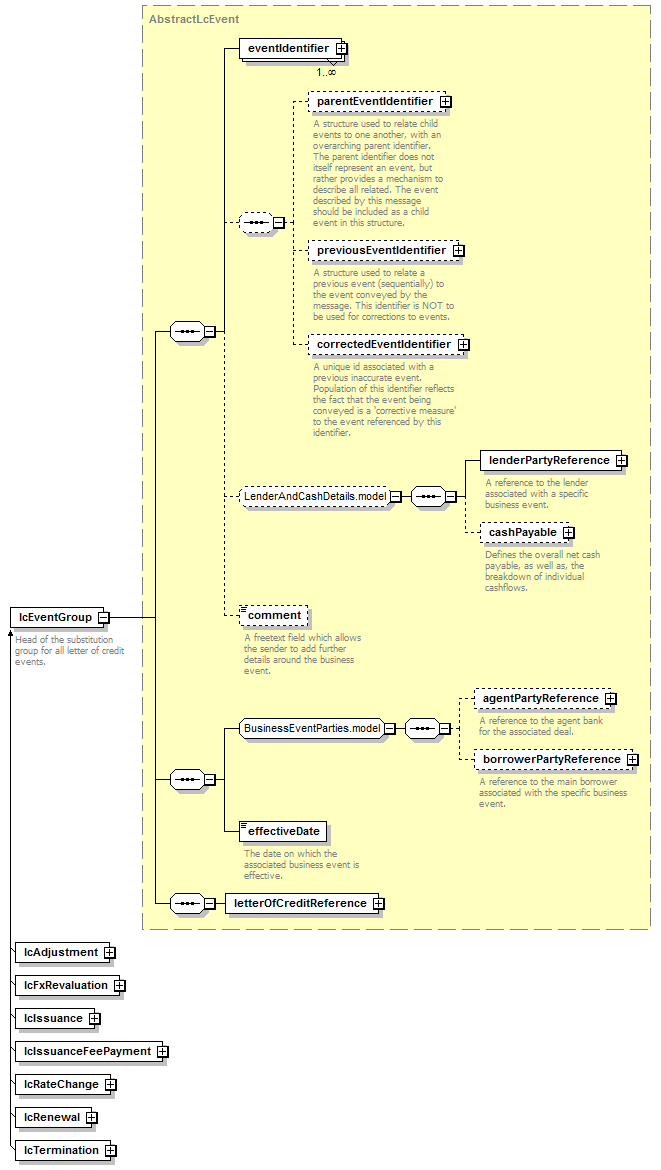

Content Model Diagram
XML Representation Summary
<lcEventGroup>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, letterOfCreditReference
</lcEventGroup>
Content model elements (11):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
effectiveDate (defined in AbstractLoanServicingEvent complexType),
eventIdentifier (defined in AbstractLoanEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
letterOfCreditReference (defined in AbstractLcEvent complexType),
parentEventIdentifier,
previousEventIdentifier
Included in content model of elements (2):
lcNotification, loanBulkServicingNotification
May be substituted with elements (7):
lcAdjustment, lcFxRevaluation, lcIssuance, lcIssuanceFeePayment, lcRateChange, lcRenewal, lcTermination
Known Usage Locations
Annotation
Head of the substitution group for all letter of credit events.
XML Source (w/o annotations (1); see within schema source)
<xsd:element abstract="true" name="lcEventGroup" type="AbstractLcEvent"/>
