group "CurrentPriorCommitment.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
2 elements
Defined:
globally in fpml-loan-5-11.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

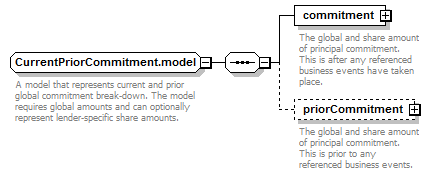

Content Model Diagram
Complex Content Model
commitment, priorCommitment?
Content Model Elements (2):
commitment, priorCommitment
Known Usage Locations
Annotation
A model that represents current and prior global commitment break-down. The model requires global amounts and can optionally represent lender-specific share amounts.
XML Source (w/o annotations (3); see within schema source)
<xsd:group name="CurrentPriorCommitment.model">
<xsd:sequence>
<xsd:element name="commitment" type="FacilityCommitment"/>
<xsd:element minOccurs="0" name="priorCommitment" type="FacilityCommitment"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/2)
commitment
Type:
FacilityCommitment, complex content
The global and share amount of principal commitment. This is after any referenced business events have taken place.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commitment" type="FacilityCommitment"/>
priorCommitment
Type:
FacilityCommitment, complex content
The global and share amount of principal commitment. This is prior to any referenced business events.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="priorCommitment" type="FacilityCommitment"/>
