element <accruingFeeOption> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AccruingFeeOption
Content:
complex, 8 elements
Defined:
locally within FacilityOptionsFeesAndRates.model group in fpml-loan-5-11.xsd; see XML source

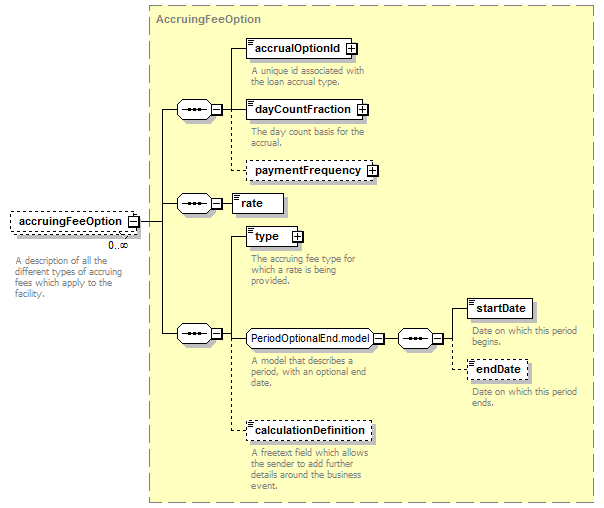

Content Model Diagram
XML Representation Summary
<accruingFeeOption>

Content:
accrualOptionId, dayCountFraction, paymentFrequency?, rate, type, startDate, endDate?, calculationDefinition?
</accruingFeeOption>
Content model elements (8):
dayCountFraction (defined in AccrualOptionBase complexType),
endDate (defined in PeriodOptionalEnd.model group),
paymentFrequency (defined in AccrualOptionBase complexType),
rate (defined in FeeRateOptionBase complexType),
type (defined in AccruingFeeOption complexType)
Included in content model of elements (5):
delayedDraw, facilityGroup, letterOfCreditFacility, revolver, termLoan
Annotation
A description of all the different types of accruing fees which apply to the facility.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="accruingFeeOption" type="AccruingFeeOption"/>
