element <facilityGroup> (global abstract)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	AbstractFacility
Content:	complex, 1 attribute, 30 elements
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	may be substituted with 4 elements
Defined:	globally in fpml-loan-5-11.xsd; see XML source
Used:	at 6 locations

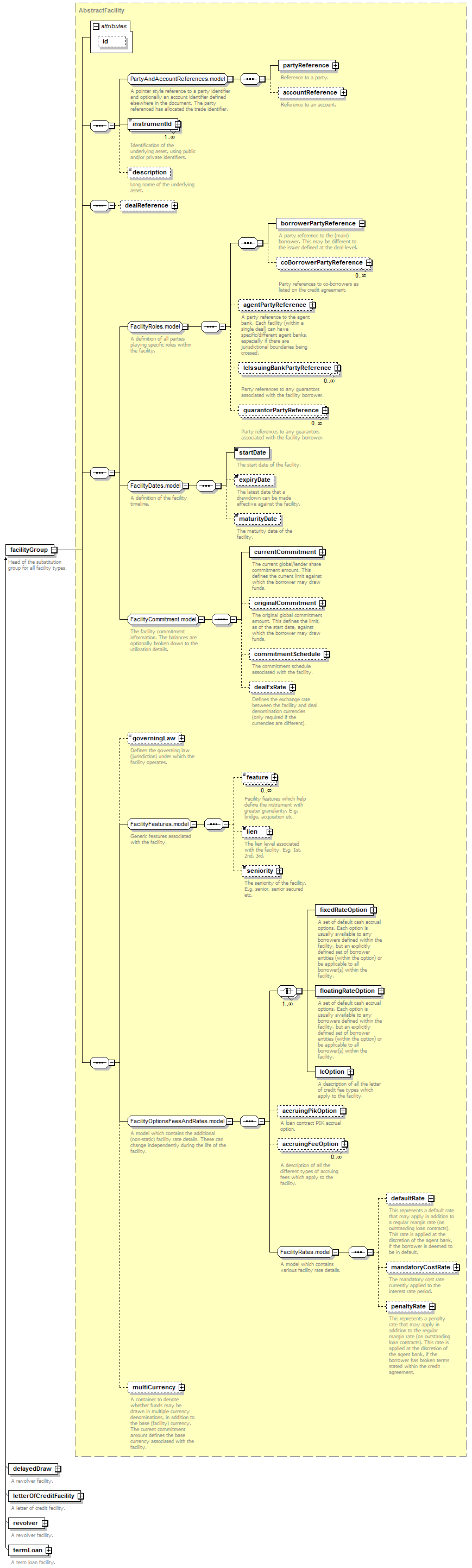

Content Model Diagram

XML Representation Summary

<facilityGroup

xsd:ID

Content:

</facilityGroup>

Content model elements (30):

accountReference (defined in PartyAndAccountReferences.model group),

accruingFeeOption (defined in FacilityOptionsFeesAndRates.model group),

accruingPikOption (defined in FacilityOptionsFeesAndRates.model group),

agentPartyReference (defined in FacilityRoles.model group),

borrowerPartyReference (defined in FacilityRoles.model group),

coBorrowerPartyReference,

commitmentSchedule (defined in FacilityCommitment.model group),

description (defined in IdentifiedAssetWithParty complexType),

expiryDate (defined in FacilityDates.model group),

feature (defined in FacilityFeatures.model group),

fixedRateOption (defined in FacilityOptionsFeesAndRates.model group),

floatingRateOption (defined in FacilityOptionsFeesAndRates.model group),

governingLaw (defined in AbstractFacility complexType),

guarantorPartyReference (defined in FacilityRoles.model group),

instrumentId (defined in IdentifiedAssetWithParty complexType),

lcIssuingBankPartyReference,

lcOption (defined in FacilityOptionsFeesAndRates.model group),

lien (defined in FacilityFeatures.model group),

mandatoryCostRate (defined in FacilityRates.model group),

maturityDate (defined in FacilityDates.model group),

multiCurrency,

originalCommitment,

partyReference (defined in PartyAndAccountReferences.model group),

penaltyRate,

seniority (defined in FacilityFeatures.model group),

startDate (defined in FacilityDates.model group)

Included in content model of elements (2):

deal, facilityStatement

May be substituted with elements (4):

delayedDraw, letterOfCreditFacility, revolver, termLoan

Known Usage Locations

Within global complexTypes (2):

Deal [ref], FacilityStatement [ref]
As head element of substitution group affiliations (4):

delayedDraw, letterOfCreditFacility, revolver, termLoan

Annotation

Head of the substitution group for all facility types.

XML Source (w/o annotations (1); see within schema source)

<xsd:element abstract="true" name="facilityGroup" type="AbstractFacility"/>
