element <accruingPikOption> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AccruingPikOption
Content:
complex, 6 elements
Defined:
locally within FacilityOptionsFeesAndRates.model group in fpml-loan-5-11.xsd; see XML source

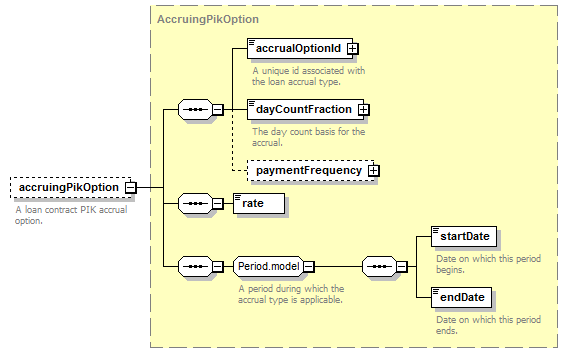

Content Model Diagram
XML Representation Summary
<accruingPikOption>

Content:
accrualOptionId, dayCountFraction, paymentFrequency?, rate, startDate, endDate
</accruingPikOption>
Content model elements (6):
dayCountFraction (defined in AccrualOptionBase complexType),
endDate (defined in Period.model group),
paymentFrequency (defined in AccrualOptionBase complexType),
rate (defined in FeeRateOptionBase complexType),
startDate (defined in Period.model group)
Included in content model of elements (5):
delayedDraw, facilityGroup, letterOfCreditFacility, revolver, termLoan
Annotation
A loan contract PIK accrual option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="accruingPikOption" type="AccruingPikOption"/>
