group "PeriodWithDays.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	3 elements
Defined:	globally in fpml-loan-5-11.xsd; see XML source
Includes:	definition of 1 element
Used:	at 4 locations

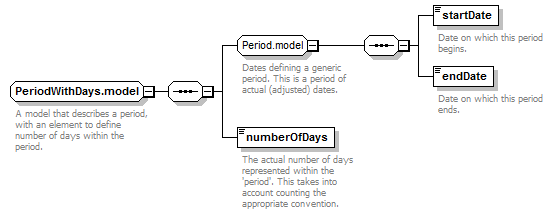

Content Model Diagram

Complex Content Model

Content Model Elements (3):

endDate (defined in Period.model group),

Known Usage Locations

Annotation

A model that describes a period, with an element to define number of days within the period.

XML Source (w/o annotations (3); see within schema source)

<xsd:sequence>

<xsd:group ref="Period.model"/>

<xsd:element name="numberOfDays" type="xsd:integer"/>

</xsd:sequence>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 1/3)

Type:

xsd:integer, predefined, simple content

The actual number of days represented within the 'period'. This takes into account counting the appropriate convention.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="numberOfDays" type="xsd:integer"/>
