group "Utilization.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
4 elements
Defined:
globally in fpml-loan-5-11.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

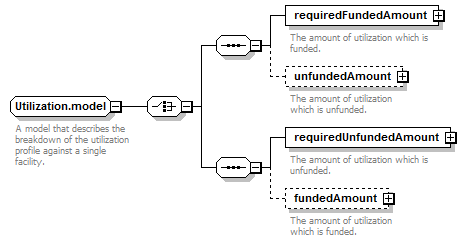

Content Model Diagram
Complex Content Model
(requiredFundedAmount, unfundedAmount?) | (requiredUnfundedAmount, fundedAmount?)
Content Model Elements (4):
fundedAmount (defined in Utilization.model group),
Known Usage Locations
Annotation
A model that describes the breakdown of the utilization profile against a single facility.
XML Source (w/o annotations (5); see within schema source)
<xsd:group name="Utilization.model">
<xsd:choice>
<xsd:sequence>
<xsd:element name="requiredFundedAmount" type="MoneyWithParticipantShare"/>
<xsd:element minOccurs="0" name="unfundedAmount" type="MoneyWithParticipantShare"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="requiredUnfundedAmount" type="MoneyWithParticipantShare"/>
<xsd:element minOccurs="0" name="fundedAmount" type="MoneyWithParticipantShare"/>
</xsd:sequence>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 4/4)
fundedAmount
Type:
MoneyWithParticipantShare, complex content
The amount of utilization which is funded.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="fundedAmount" type="MoneyWithParticipantShare"/>
requiredFundedAmount
Type:
MoneyWithParticipantShare, complex content
The amount of utilization which is funded.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="requiredFundedAmount" type="MoneyWithParticipantShare"/>
requiredUnfundedAmount
Type:
MoneyWithParticipantShare, complex content
The amount of utilization which is unfunded.
XML Source (w/o annotations (1); see within schema source)
unfundedAmount
Type:
MoneyWithParticipantShare, complex content
The amount of utilization which is unfunded.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="unfundedAmount" type="MoneyWithParticipantShare"/>
