element <fxCurveValuation> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxCurveValuation
Content:
complex, 2 attributes, 12 elements
Subst.Gr:
may substitute for element pricingStructureValuation
Defined:
globally in fpml-mktenv-5-11.xsd; see XML source
Used:
never

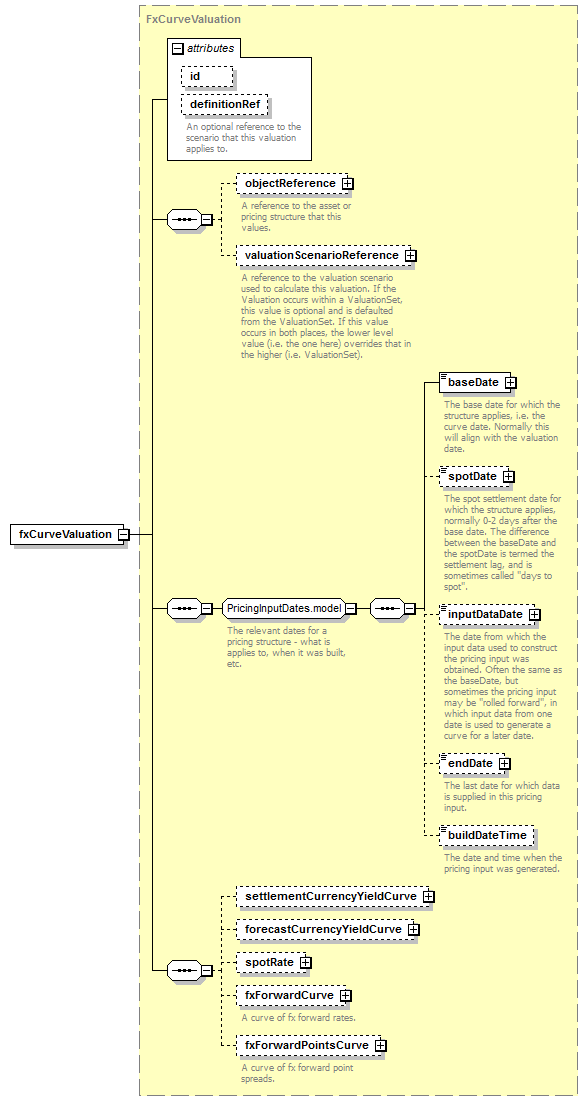

Content Model Diagram
XML Representation Summary
<fxCurveValuation

id
 =
xsd:ID
definitionRef
 =
xsd:IDREF

>

Content:
objectReference?, valuationScenarioReference?, baseDate, spotDate?, inputDataDate?, endDate?, buildDateTime?, settlementCurrencyYieldCurve?, forecastCurrencyYieldCurve?, spotRate?, fxForwardCurve?, fxForwardPointsCurve?
</fxCurveValuation>
Content model elements (12):
baseDate,
buildDateTime,
endDate (defined in PricingInputDates.model group),
forecastCurrencyYieldCurve,
fxForwardCurve,
fxForwardPointsCurve,
inputDataDate,
objectReference,
settlementCurrencyYieldCurve,
spotDate,
spotRate (in fxCurveValuation),
valuationScenarioReference (defined in Valuation complexType)
May be included in elements by substitutions (1):
market
XML Source (see within schema source)
<xsd:element name="fxCurveValuation" substitutionGroup="pricingStructureValuation" type="FxCurveValuation"/>
