group "DerivativeCalculationParameters.model" | XML Schema Documentation

group "DerivativeCalculationParameters.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	5 elements
Defined:	globally in fpml-riskdef-5-11.xsd; see XML source
Used:	at 1 location

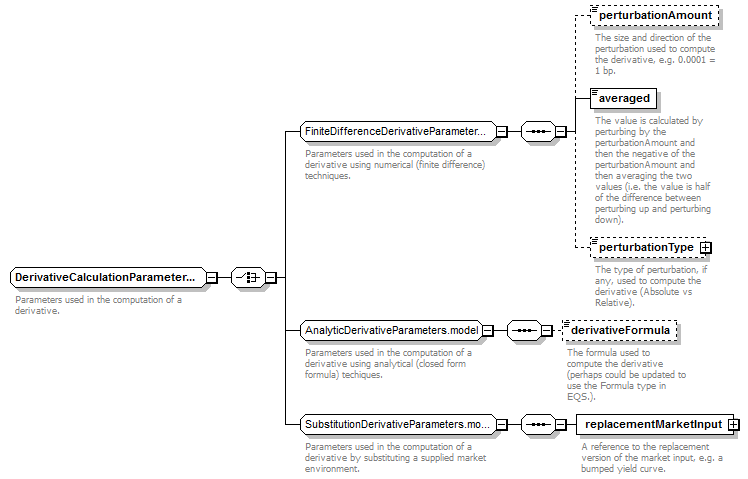

Content Model Diagram

Complex Content Model

(perturbationAmount?, averaged, perturbationType?) | derivativeFormula? | replacementMarketInput

Content Model Elements (5):

averaged, derivativeFormula, perturbationAmount, perturbationType, replacementMarketInput

Known Usage Locations

In definitions of global complexTypes (1):

DerivativeCalculationProcedure

Annotation

Parameters used in the computation of a derivative.

XML Source (w/o annotations (1); see within schema source)

<xsd:group name="DerivativeCalculationParameters.model">

<xsd:choice>

<xsd:group ref="FiniteDifferenceDerivativeParameters.model"/>

<xsd:group ref="AnalyticDerivativeParameters.model"/>

<xsd:group ref="SubstitutionDerivativeParameters.model"/>

</xsd:choice>

</xsd:group>
