group "FloatingRateIndex.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
2 elements
Defined:
globally in fpml-shared-5-11.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 3 locations

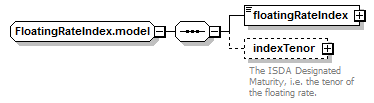

Content Model Diagram
Complex Content Model
floatingRateIndex, indexTenor?
Content Model Elements (2):
floatingRateIndex (defined in FloatingRateIndex.model group),
indexTenor (defined in FloatingRateIndex.model group)
Known Usage Locations
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="FloatingRateIndex.model">
<xsd:sequence>
<xsd:element name="floatingRateIndex" type="FloatingRateIndex"/>
<xsd:element minOccurs="0" name="indexTenor" type="Period"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/2)
floatingRateIndex
Type:
FloatingRateIndex, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element name="floatingRateIndex" type="FloatingRateIndex"/>
indexTenor
Type:
Period, complex content
The ISDA Designated Maturity, i.e. the tenor of the floating rate.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="indexTenor" type="Period"/>
