element <businessUnit> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
BusinessUnit
Content:
complex, 1 attribute, 4 elements
Defined:
locally within Party.model group in fpml-shared-5-11.xsd; see XML source

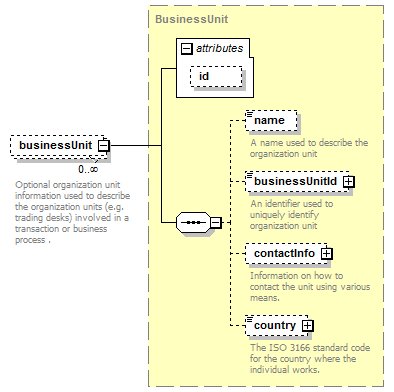

Content Model Diagram
XML Representation Summary
<businessUnit

id
 =
xsd:ID

>

Content:
name?, businessUnitId?, contactInfo?, country?
</businessUnit>
Content model elements (4):
Included in content model of elements (16):
party (defined in PartiesAndAccounts.model group),
Annotation
Optional organization unit information used to describe the organization units (e.g. trading desks) involved in a transaction or business process .
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="businessUnit" type="BusinessUnit"/>
