element <assetClass> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AssetClass
Content:
simple, 1 attribute
Defined:
locally within Product.model group in fpml-shared-5-11.xsd; see XML source

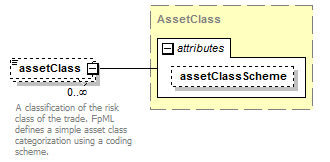

Content Model Diagram
XML Representation Summary
<assetClass

assetClassScheme
 =
xsd:anyURI : "http://www.fpml.org/coding-scheme/asset-class"

>

Content:
{ xsd:normalizedString }
</assetClass>
Simple Content Detail:
MaxLength:
255
MinLength:
0
Included in content model of elements (55):
bondOption,
brokerEquityOption,
bulletPayment,
capFloor,
commodityBasketOption,
commodityDigitalOption,
commodityForward,
commodityOption,
commodityPerformanceSwap,
commoditySwap,
commoditySwaption,
correlationSwap,
creditDefaultSwap,
creditDefaultSwap (in creditDefaultSwapOption),
creditDefaultSwapOption,
creditLimit,
dividendSwapOptionTransactionSupplement,
dividendSwapTransactionSupplement,
dividendSwapTransactionSupplement (in dividendSwapOptionTransactionSupplement),
equityForward,
equityOption,
equityOptionTransactionSupplement,
equitySwapTransactionSupplement,
fra,
fxAccrualDigitalOption,
fxAccrualForward,
fxAccrualOption,
fxDigitalOption,
fxFlexibleForward,
fxForwardVolatilityAgreement,
fxOption,
fxRangeAccrual,
fxSingleLeg,
fxSwap,
fxTargetKnockoutForward,
fxVarianceSwap,
fxVolatilitySwap,
genericProduct,
instrumentTradeDetails,
product,
repo,
returnSwap,
securityLending,
standardProduct,
strategy,
swap,
swap (in swaption),
swaption,
termDeposit,
varianceOptionTransactionSupplement,
varianceSwap,
varianceSwapTransactionSupplement,
varianceSwapTransactionSupplement (in varianceOptionTransactionSupplement),
volatilitySwap,
volatilitySwapTransactionSupplement
Annotation
A classification of the risk class of the trade. FpML defines a simple asset class categorization using a coding scheme.
XML Source (w/o annotations (1); see within schema source)
<xsd:element fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="This element has been moved to before productType" maxOccurs="unbounded" minOccurs="0" name="assetClass" type="AssetClass"/>
