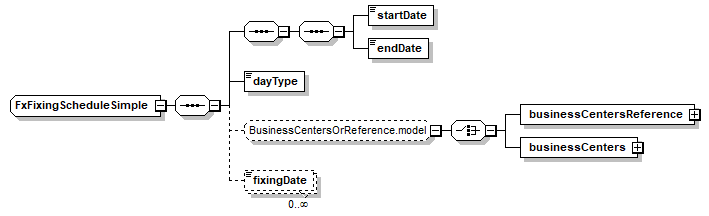

complexType "FxFixingScheduleSimple"
Namespace: |
|
Content: |
|
Defined: |
|
Includes: |
|
Used: |
|
XML Representation Summary |
<...> |
|
|
</...> |
Content Model Elements (6):
-
All Direct / Indirect Based Elements (1):
-
Annotation
Describes the FX fixing schedule, a single continuous observation period which follows the applicable business day schedule for the quoted rate source.
XML Source (w/o annotations (6); see within schema source)
<xsd:sequence>
<xsd:sequence>
<xsd:sequence>
<xsd:element name="startDate" type="xsd:date"/>
<xsd:element name="endDate" type="xsd:date"/>
</xsd:sequence>
</xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="fixingDate" type="xsd:date"/>
</xsd:sequence>
</xsd:complexType>
|
Content Element Detail (all declarations; defined within this component only; 4/6)
-
Specifies whether the schedule follows the business or calendar days.
Simple Content
Enumeration: |
"Business" |
- |
When calculating the number of days between two dates the count includes only business days.
|
"Calendar" |
- |
When calculating the number of days between two dates the count includes all calendar days.
|
"CommodityBusiness" |
- |
When calculating the number of days between two dates the count includes only commodity business days.
|
"CurrencyBusiness" |
- |
When calculating the number of days between two dates the count includes only currency business days.
|
"ExchangeBusiness" |
- |
When calculating the number of days between two dates the count includes only stock exchange business days.
|
"ScheduledTradingDay" |
- |
When calculating the number of days between two dates the count includes only scheduled trading days.
|
|
XML Source (w/o annotations (1); see within schema source)
-
Type: |
xsd:date, predefined, simple content |
The end of the period over which observations are made to determine whether a trigger event has occurred.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="endDate" type="xsd:date"/>
|
-
Type: |
xsd:date, predefined, simple content |
An explicit list of dates in the schedule. For documentation purpose only.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="fixingDate" type="xsd:date"/>
|
-
Type: |
xsd:date, predefined, simple content |
The start of the period over which observations are made to determine whether a trigger has occurred.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="startDate" type="xsd:date"/>
|
