element <regulatoryProductInfo> (global)
Namespace:
http://www.fpml.org/FpML-5/recordkeeping
Type:
RegulatoryReportingProduct
Content:
complex, 1 attribute, 18 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-reg-reporting-product-5-11.xsd; see XML source
Used:
never

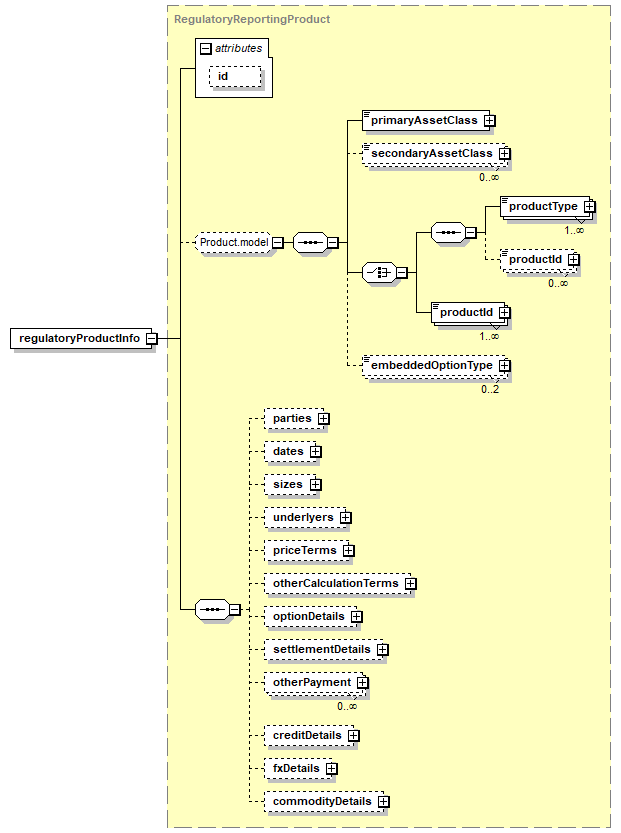

Content Model Diagram
XML Representation Summary
<regulatoryProductInfo

id
 =
xsd:ID

>

Content:
(primaryAssetClass, secondaryAssetClass*, ((productType+, productId*) | productId+), embeddedOptionType[0..2])?, parties?, dates?, sizes?, underlyers?, priceTerms?, otherCalculationTerms?, optionDetails?, settlementDetails?, otherPayment*, creditDetails?, fxDetails?, commodityDetails?
</regulatoryProductInfo>
Content model elements (18):
primaryAssetClass (defined in Product.model group),
productId (defined in Product.model group),
productId (defined in Product.model group),
productType (defined in Product.model group),
May be included in elements by substitutions (23):
originalTrade (defined in TradeChangeBase complexType),
resultingTrade (defined in PhysicalSettlement complexType),
resultingTrade (defined in TradeChangeBase complexType),
trade (defined in DataDocument complexType),
trade (defined in TradeValuationItem complexType),
Annotation
Product data fields required by regulators in satisfaction of non-public (recordkeeping) regulatory reporting regulations. These are identified where possible using CPMI-IOSCO Common Data Element lexicon and terminology, but include additional fields required by other regulations. This product is not intended to provide the full trade economics required for confirmation or valuation purposes. This product allows a simpler representation of OTC derivative products that have full standardized representations in FpML.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="regulatoryProductInfo" substitutionGroup="product" type="RegulatoryReportingProduct"/>
