Namespace: |
|
Content: |
4 elements |
Defined: |
globally in fpml-shared-5-3.xsd; see XML source |
Includes: |
definitions of 4 elements |
Used: |
at 1 location |

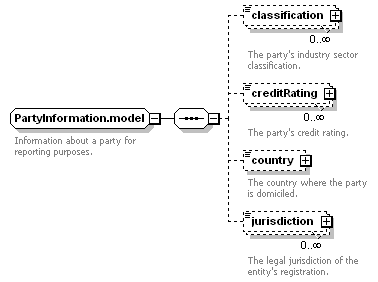

Complex Content Model |
classification*, creditRating*, country?, jurisdiction* |
classification, | creditRating (defined in PartyInformation.model group), |
<xsd:group name="PartyInformation.model"> <xsd:sequence> <xsd:element maxOccurs="unbounded" minOccurs="0" name="classification" type="IndustryClassification"/> </xsd:sequence> </xsd:group> |
Type: |
IndustryClassification, simple content |
xsd:normalizedString |
maxLength: |
255 |
<xsd:element maxOccurs="unbounded" minOccurs="0" name="classification" type="IndustryClassification"/> |
Type: |
CountryCode, simple content |
xsd:token |
<xsd:element minOccurs="0" name="country" type="CountryCode"/> |
Type: |
CreditRating, simple content |
xsd:normalizedString |
maxLength: |
255 |
<xsd:element maxOccurs="unbounded" minOccurs="0" name="creditRating" type="CreditRating"/> |
Type: |
GoverningLaw, simple content |
xsd:normalizedString |
maxLength: |
255 |
<xsd:element maxOccurs="unbounded" minOccurs="0" name="jurisdiction" type="GoverningLaw"/> |
