element <settlementCurrency> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	IdentifiedCurrency
Content:	simple, 2 attributes
Defined:	locally witnin CommoditySwapDetails.model group in fpml-com-5-3.xsd; see XML source

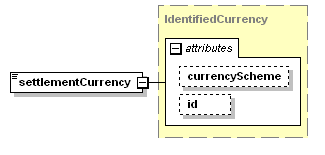

Content Model Diagram

XML Representation Summary

<settlementCurrency

currencyScheme	=	xsd:anyURI : "http://www.fpml.org/ext/iso4217-2001-08-15"
id	=	xsd:ID

Content:

{ xsd:normalizedString }

</settlementCurrency>

Simple Content Detail:

MaxLength:

255

Included in content model of elements (2):

commoditySwap,

commoditySwap (in commoditySwaption)

Annotation

The currency into which the Commodity Swap Transaction will settle. If this is not the same as the currency in which the Commodity Reference Price is quoted on a given floating leg of the Commodity Swap Transaction, then an FX rate should also be specified for that leg.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="settlementCurrency" type="IdentifiedCurrency"/>
