element <correlationSwap> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CorrelationSwap
Content:
complex, 1 attribute, 9 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-correlation-swaps-5-3.xsd; see XML source
Used:
never

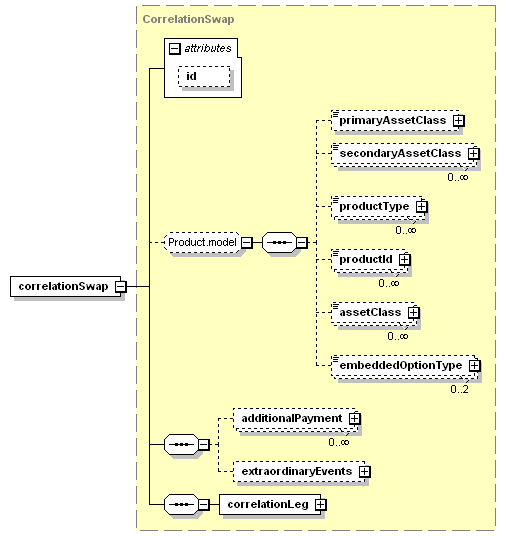

Content Model Diagram
XML Representation Summary
<correlationSwap

id
 =
 xsd:ID
    >

Content:
 (primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*, embeddedOptionType[0..2])?, additionalPayment*, extraordinaryEvents?, correlationLeg
</correlationSwap>
Content model elements (9):
additionalPayment (defined in NettedSwapBase complexType),
assetClass,
correlationLeg,
embeddedOptionType,
extraordinaryEvents (defined in NettedSwapBase complexType),
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass
May be included in elements by substitutions (18):
feeTrade,
oldTrade (defined in TradeChangeContent complexType),
originalTrade (defined in TradeChangeBase complexType),
 trade (defined in DataDocument complexType),
trade (defined in Events.model group),
trade (defined in ImpliedTrade complexType),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
Annotation
Specifies the structure of a correlation swap.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="correlationSwap" substitutionGroup="product" type="CorrelationSwap"/>
