group "EquityUnderlyerProvisions.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
4 elements
Defined:
globally in fpml-eq-shared-5-3.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 3 locations

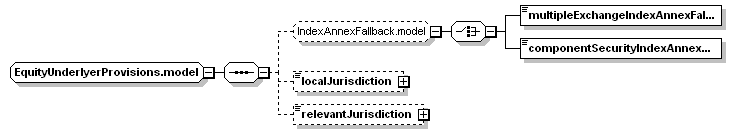

Content Model Diagram
Complex Content Model
(multipleExchangeIndexAnnexFallback | componentSecurityIndexAnnexFallback)?, localJurisdiction?, relevantJurisdiction?
Content Model Elements (4):
componentSecurityIndexAnnexFallback,
localJurisdiction (defined in EquityUnderlyerProvisions.model group),
multipleExchangeIndexAnnexFallback,
relevantJurisdiction
Known Usage Locations
Annotation
A group containing Equity Underlyer provisions.
XML Source (w/o annotations (3); see within schema source)
<xsd:group name="EquityUnderlyerProvisions.model">
<xsd:sequence>
<xsd:group minOccurs="0" ref="IndexAnnexFallback.model"/>
<xsd:element minOccurs="0" name="localJurisdiction" type="CountryCode"/>
<xsd:element minOccurs="0" name="relevantJurisdiction" type="CountryCode"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/4)
localJurisdiction
Type:
CountryCode, simple content
Local Jurisdiction is a term used in the AEJ Master Confirmation, which is used to determine local taxes, which shall mean taxes, duties, and similar charges imposed by the taxing authority of the Local Jurisdiction If this element is not present Local Jurisdiction is Not Applicable.
Simple Content
xsd:token
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="localJurisdiction" type="CountryCode"/>
relevantJurisdiction
Type:
CountryCode, simple content
Relevent Jurisdiction is a term used in the AEJ Master Confirmation, which is used to determine local taxes, which shall mean taxes, duties and similar charges that would be imposed by the taxing authority of the Country of Underlyer on a Hypothetical Broker Dealer assuming the Applicable Hedge Positions are held by its office in the Relevant Jurisdiction. If this element is not present Relevant Jurisdiction is Not Applicable.
Simple Content
xsd:token
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="relevantJurisdiction" type="CountryCode"/>
