element <messageRejected> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Exception
Content:
complex, 3 attributes, 7 elements
Defined:
globally in fpml-msg-5-3.xsd; see XML source
Used:
never

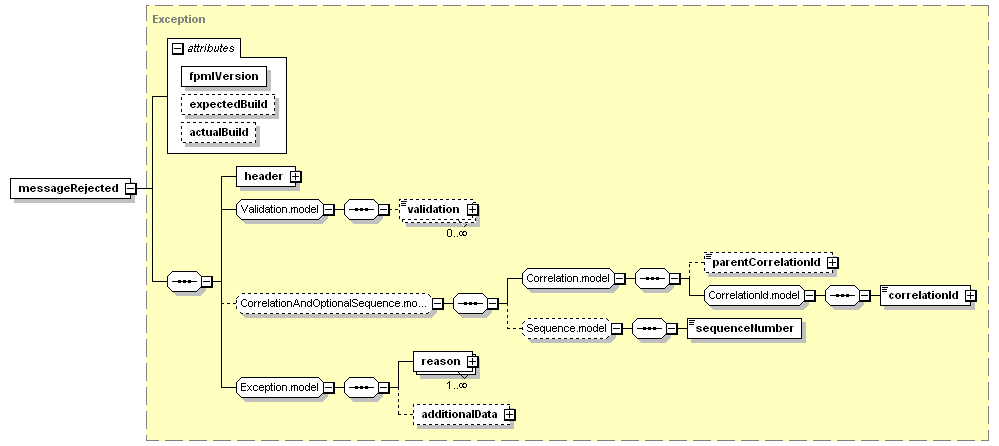

Content Model Diagram
XML Representation Summary
<messageRejected

fpmlVersion
 =
 xsd:token
expectedBuild
 =
 xsd:positiveInteger
actualBuild
 =
 "6"
    >

Content:
 header, validation*, (parentCorrelationId?, correlationId, sequenceNumber?)?, reason+, additionalData?
</messageRejected>
Content model elements (7):
additionalData (defined in Exception.model group),
header (defined in Exception complexType),
 reason (defined in Exception.model group),
sequenceNumber (defined in Sequence.model group),
Annotation
The root element used for rejected message exceptions
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="messageRejected" type="Exception"/>
