element <pricingStructure> (global abstract)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	PricingStructure
Content:	complex, 1 attribute, 2 elements
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	may be substituted with 4 elements
Defined:	globally in fpml-riskdef-5-3.xsd; see XML source
Used:	at 5 locations

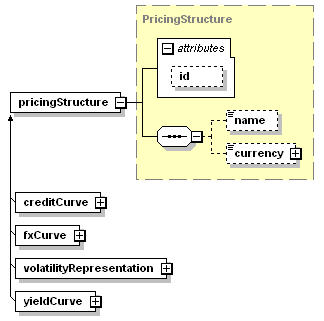

Content Model Diagram

XML Representation Summary

<pricingStructure

xsd:ID

Content:

</pricingStructure>

Content model elements (2):

currency (defined in PricingStructure complexType),

name (defined in PricingStructure complexType)

Included in content model of elements (1):

May be substituted with elements (4):

Known Usage Locations

Within global complexTypes (1):
Market [ref]
As head element of substitution group affiliations (4):
creditCurve, fxCurve, volatilityRepresentation, yieldCurve

XML Source (see within schema source)

<xsd:element abstract="true" name="pricingStructure" type="PricingStructure"/>
